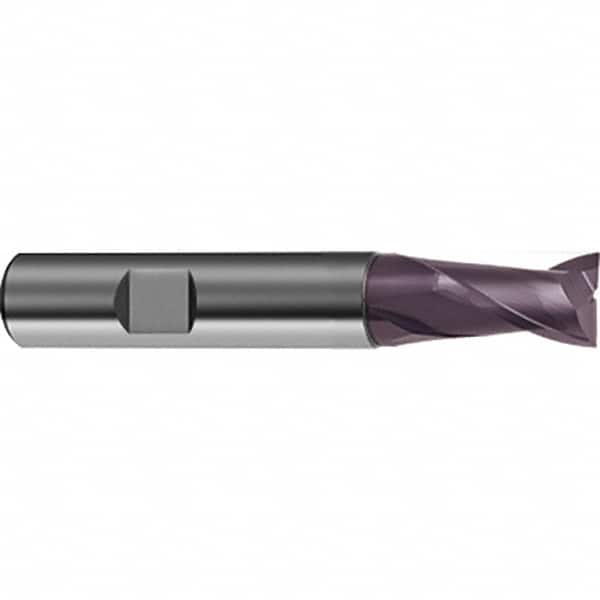

Guhring - End Mill - 26mm Extended Reach
Item #: 98857667
Brand: Guhring
Model #: 9036340100000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
FIREX is a multi-layer coating that combines the characteristics of universal applicability of TiN, the heat resistance of TiAlN and the shock resistance of TiCN. FIREX is a proprietary coating exclusive to Guhring, Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| End Type | Corner Chamfer |
| Chamfer Width (mm) | 0.100 |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Finish/Coating | FIREX |
| Length of Cut (mm) | 11.00 |
| Length of Cut (Decimal Inch) | 0.4330 |
| Shank Diameter (mm) | 10.00 |
| Overall Length (mm) | 66.00 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Reach Length (mm) | 26.00 |
| Chamfer Angle | 45 |
| Single or Double End | Single |
| Maximum Helix Angle | 30 |
| Length Type | Stub |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Additional Information | Weldon Shank |
| Series/List | 3634 |
