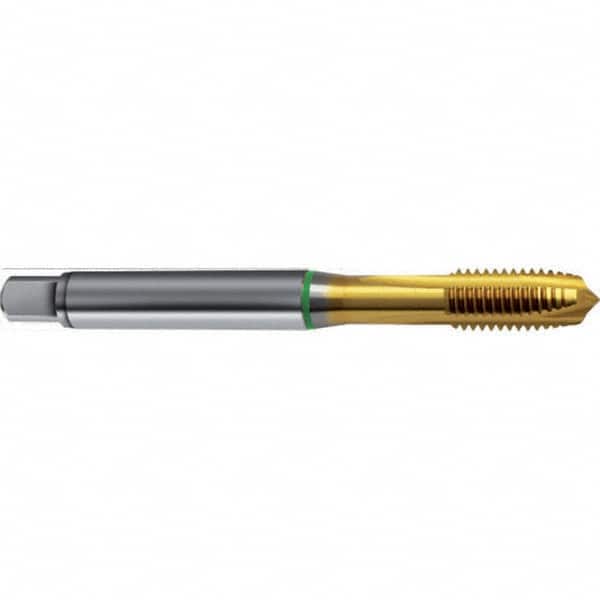

Guhring - M16x2.00 Metric 4 Flute 6H Plug Spiral Flute Tap - High Speed Steel, TiN Finish, 110mm OAL, Right Hand Flute, Right Hand Thread, D13, Series 4331
Item #: 98855828
Brand: Guhring
Model #: 9043310160000
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed of a high flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M16x2.00 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Thread Limit | D13 |
| Number of Flutes | 4 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 110.00 |
| Thread Standard | Metric |
| Flute Type | Spiral |
| Style | Spiral Point |
| Series/List | 4331 |
| Shank Diameter (mm) | 12.00 |
