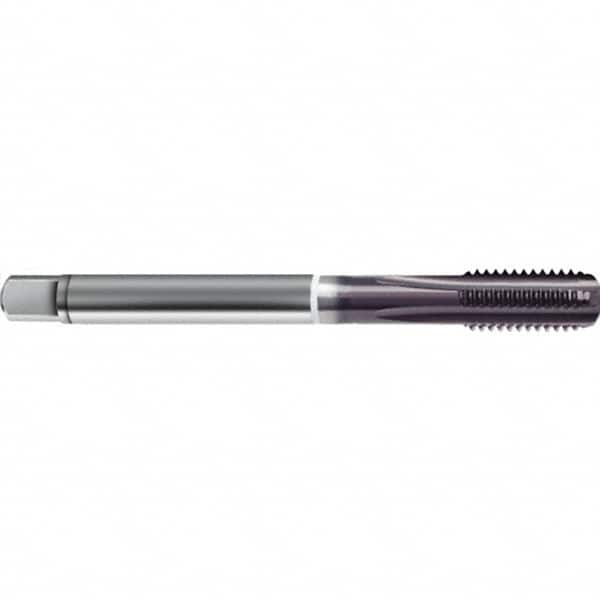

Guhring - M22x1.50 Metric 6HX 5 Flute TiAlN Finish High Speed Steel Straight Flute Standard Hand Tap - Modified Bottoming, Right Hand Thread, 125mm OAL, D6/D7 Limit
Item #: 98844715
Brand: Guhring
Model #: 9001690220070
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M22x1.50 |
| Class of Fit | 6HX |
| Thread Limit | D6/D7 |
| Number of Flutes | 5 |
| Chamfer | Modified Bottoming |
| Material | High Speed Steel |
| Finish/Coating | TiAlN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric |
| Overall Length (Decimal Inch) | 4.92130 |
| Overall Length (mm) | 125.00 |
| Series/List | 169 |
| Shank Diameter (mm) | 18.00 |
| Square Size (mm) | 14.50 |
| Material Application | Aluminum; Cast Iron; Copper |
