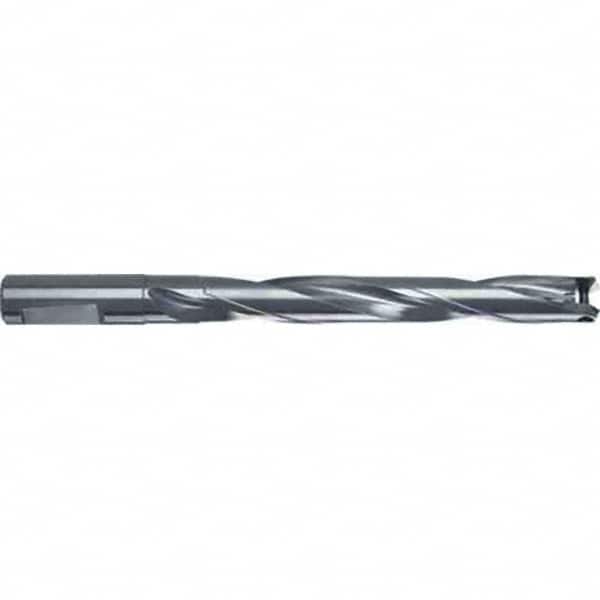

Guhring - 29.5mm Max Diam, 7xD, 31.75mm Shank Diam, 323mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 29.005 HT800 Toolholder, Series 4109
Item #: 98842388
Brand: Guhring
Model #: 9041090290050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4109 |
| Maximum Drill Diameter (mm) | 29.50 |
| Drill Depth by Diameter Ratio | 7xD |
| Maximum Drill Depth (mm) | 212.50 |
| Shank Diameter (mm) | 31.75 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 290 |
| Toolholder Style | 29.005 HT800 |
| Shank Type | Whistle Notch |
| Overall Length (mm) | 323.00 |
| Shank Length (mm) | 110.50 |
