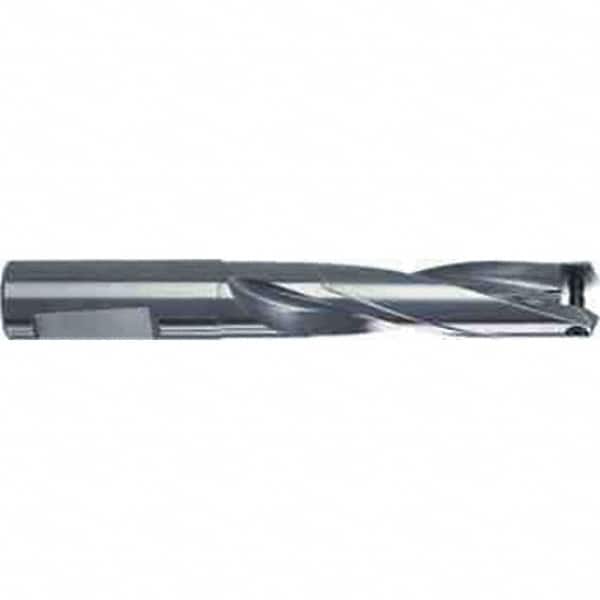

Guhring - 35mm Max Diam, 3xD, 32mm Shank Diam, 235mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 35.000 HT800 Toolholder, Series 4107
Item #: 98841240
Brand: Guhring
Model #: 9041070350000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4107 |
| Maximum Drill Diameter (mm) | 35.00 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 114.20 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 350 |
| Toolholder Style | 35.000 HT800 |
| Shank Type | Whistle Notch |
| Overall Length (mm) | 235.00 |
| Shank Length (mm) | 120.80 |
