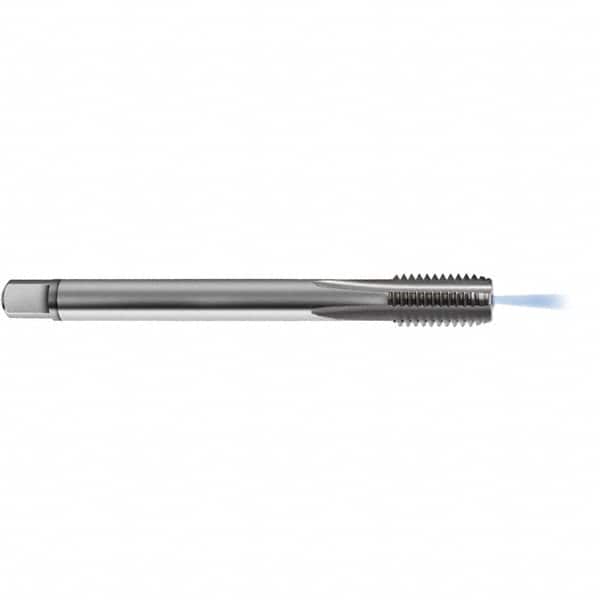

Guhring - M12x1.50 Metric 6HX 4 Flute Bright Finish Solid Carbide Straight Flute Standard Hand Tap - Modified Bottoming, Right Hand Thread, 100mm OAL, D5/D6 Limit, Through Coolant
Item #: 98841000
Brand: Guhring
Model #: 9009740120070
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M12x1.50 |
| Class of Fit | 6HX |
| Thread Limit | D5/D6 |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | Solid Carbide |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | Metric |
| Overall Length (Decimal Inch) | 3.93700 |
| Overall Length (mm) | 100.00 |
| Series/List | 974 |
| Shank Diameter (mm) | 9.00 |
| Square Size (mm) | 7.00 |
| Material Application | Aluminum; Cast Iron; Copper |
