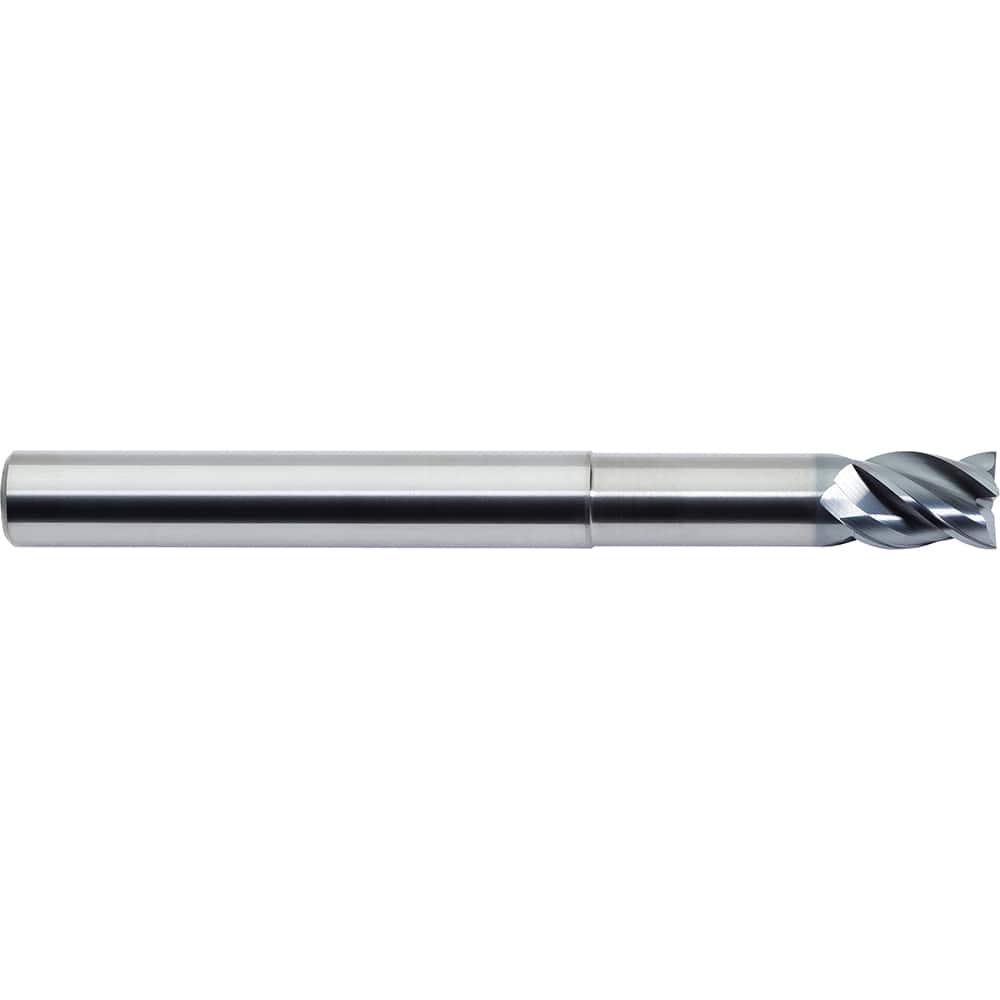

M.A. Ford - Square End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; Number of Flutes: 4 ; Length of Cut (Inch): 1/4 ; Length of Cut (Decimal Inch): 0.2500 ; Material: Solid Carbide
Item #: 98707490
Brand: M.A. Ford
Model #: 27718700N3B
Product Specifications
Square End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; Number of Flutes: 4 ; Length of Cut (Inch): 1/4 ; Length of Cut (Decimal Inch): 0.2500 ; Material: Solid Carbide
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1/4 |
| Length of Cut (Decimal Inch) | 0.2500 |
| Material | Solid Carbide |
| Finish/Coating | ALtima Blaze |
| Shank Diameter (Inch) | 3/16 |
| Single or Double End | Single |
| Overall Length (Inch) | 3 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38; 41; Variable |
| Variable Helix | Yes |
| Variable Index | Yes |
| Flute Type | Helical |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 41 |
| Chipbreaker | No |
| Series/List | 277 |
