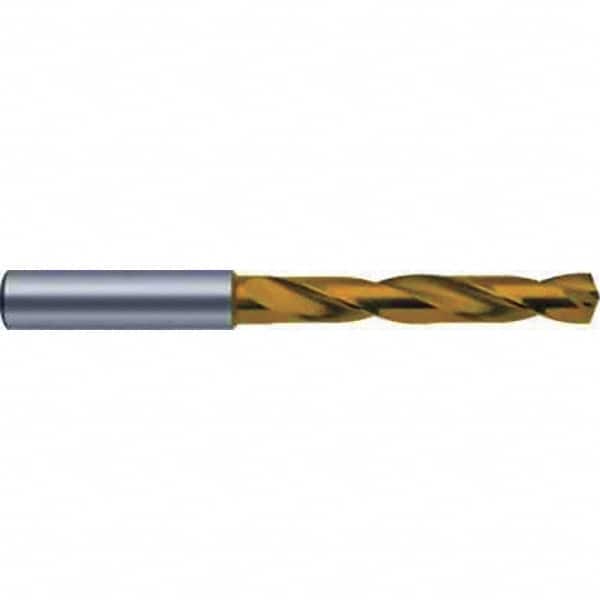

Screw Machine Length Drill Bit: 0.4449″ Dia, 140 °, Solid Carbide TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 662
Item #: 98696685
Brand: Guhring
Model #: 9016620113000
Product Specifications
| Drill Bit Size (mm) | 11.30 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Point Type | SF |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Bit Size (Decimal Inch) | 0.4449 |
| Overall Length (mm) | 118.00 |
| Overall Length (Decimal Inch) | 4.6457 |
| Shank Diameter (mm) | 12.00 |
| Series | 662 |
| Shank Length (Decimal Inch) | 1.8504 |
| Shank Length (mm) | 47.00 |
| Drill Point Length (mm) | 71.00 |
| Flute By Diameter Ratio | 5xD |
| Drill Bit Diameter Tolerance | m7 |
| Flute Length (mm) | 71.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
| Specification Number | DIN 6535HA |
| Specification Designation | DIN |
