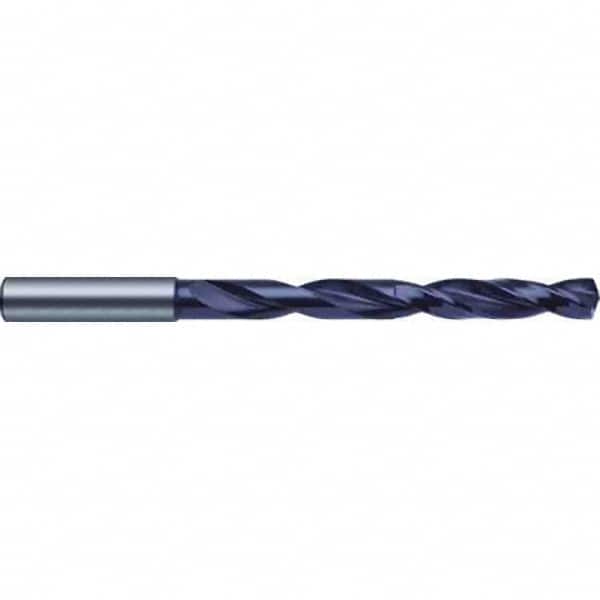

Screw Machine Length Drill Bit: 0.2067″ Dia, 140 °, Solid Carbide FIREX Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 5512
Item #: 98694508
Brand: Guhring
Model #: 9055120052500
Product Specifications
| Drill Bit Size (mm) | 5.25 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | FIREX |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Point Type | SU |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.2067 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Shank Diameter (mm) | 6.00 |
| Series | 5512 |
| Web Thinning | Web-Thinned |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Drill Point Length (mm) | 50.00 |
| Flute By Diameter Ratio | 7xD |
| Drill Bit Diameter Tolerance | m7 |
| Flute Length (mm) | 50.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Drill Bit Size Range (mm) | 5.00 to 6.50 |
| Specification Number | DIN 6535HA |
| Specification Designation | DIN |
