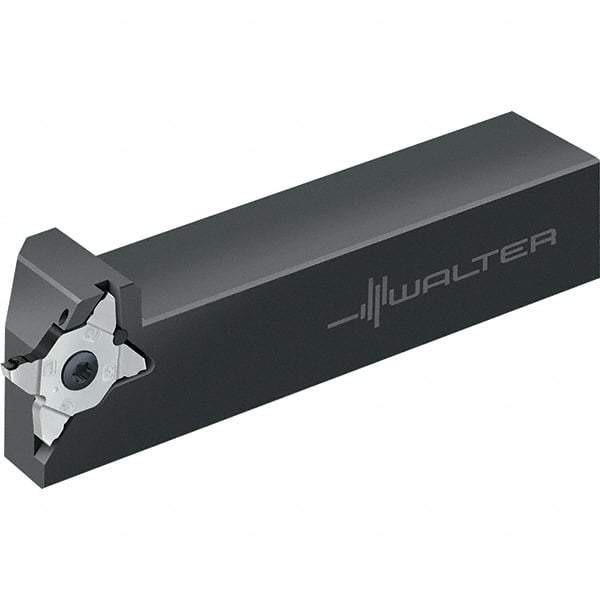

Walter - Indexable Grooving Toolholders Internal or External: External Toolholder Type: NonFace Grooving
Item #: 98580012
Brand: Walter
Model #: 7108333
Exact Tooling IR#: 04
Product Specifications
Indexable Grooving Toolholders; Internal or External: External ; Toolholder Type: NonFace Grooving ; Hand of Holder: Right Hand ; Maximum Depth of Cut (mm): 6.00 ; Minimum Groove Width (mm): 4.00 ; Maximum Groove Width (Inch): 4
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 6.00 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (Inch) | 4 |
| Overall Length (mm) | 120.00 |
| Toolholder Style | G3011 |
| Insert Compatibility | MX22 |
| Shank Height (mm) | 16.00 |
| Shank Width/Diameter (mm) | 16.00 |
| Series | G3011 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Insert Seat Size | 22 |
| Number of Inserts Used on Toolholder | 1 |
