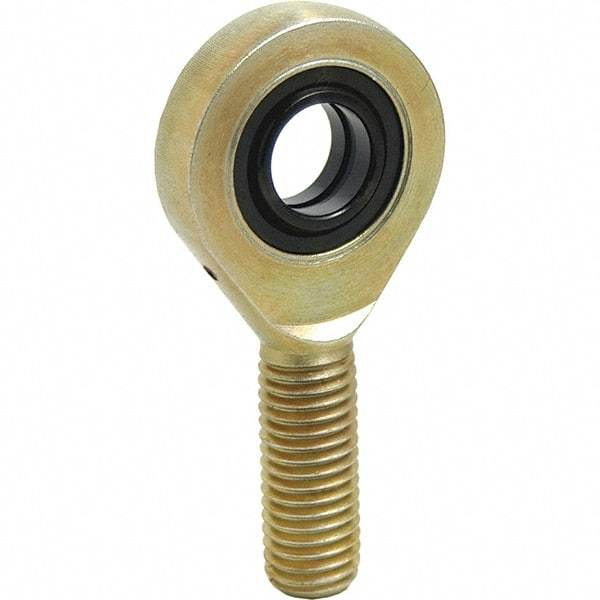

Tritan - 0.315" ID, 1.6535" Max OD, 2,248 Lb Max Static Cap, Male Spherical Rod End - M8 LH, 0.315" Shank Diam, 0.8268" Shank Length, Zinc Plated Carbon Steel with 52100/MoS2 Coated Raceway
Item #: 98573348
Brand: Tritan
Model #: SAL 8E
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Inside Diameter (Decimal Inch) | 0.3150 |
| Inside Diameter (mm) | 8.0000 |
| Inside Diameter (Inch) | 0.315 |
| Style | Male Rod End |
| Maximum Outside Diameter (Decimal Inch) | 1.6535 |
| Maximum Outside Diameter (mm) | 42.00 |
| Maximum Outside Diameter (Inch) | 2 |
| Maximum Outside Diameter (Inch) | 1.6535 |
| Maximum Static Load Capacity (Pounds) | 2248.0 |
| Width (Inch) | 0.940 |
| Width (Decimal Inch) | 0.9400 |
| Width (mm) | 23.90 |
| Thread Size | M8 |
| Material | Zinc Plated Carbon Steel |
| Shank Diameter (mm) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (Inch) | 0.315 |
| Raceway Material | 52100/MoS2 Coated |
| Shank Length (Decimal Inch) | 0.8268 |
| Shank Length (mm) | 21.000 |
| Thread Direction | Left Hand |
| Overall Length (Inch) | 2.600 |
| Overall Length (mm) | 66.0000 |
| Overall Length (Decimal Inch) | 2.6000 |
