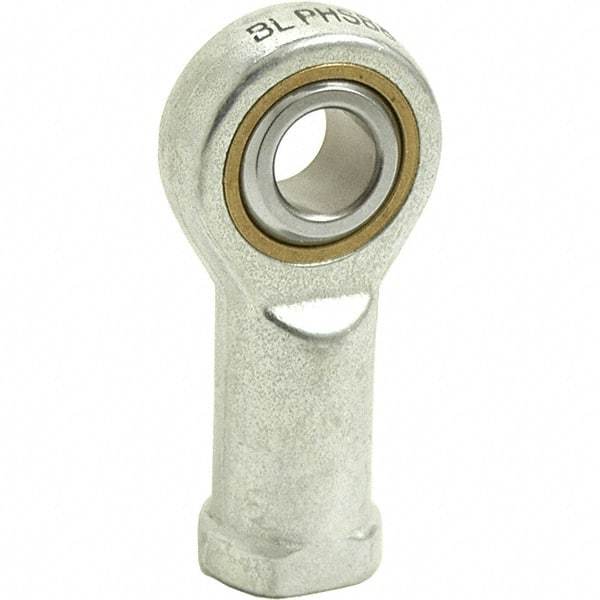

Tritan - 3/8" ID, 2-7/16" Max OD, 3,950 Lb Max Static Cap, Female Spherical Rod End - 3/8-24 UNF RH, 1/2" Shank Diam, 13/16" Shank Length, Zinc Plated Carbon Steel with Sintered Oil Impregnated Bronze Raceway - Benchmark Tooling

Tritan - 3/8" ID, 2-7/16" Max OD, 3,950 Lb Max Static Cap, Female Spherical Rod End - 3/8-24 UNF RH, 1/2" Shank Diam, 13/16" Shank Length, Zinc Plated Carbon Steel with Sintered Oil Impregnated Bronze Raceway


Item #: 98572886
Brand: Tritan
Model #: HF 6
Exact Tooling IR#: 04

Product Specifications
Inside Diameter (Decimal Inch) 0.3750
Inside Diameter (mm) 9.5000
Inside Diameter (Inch) 3/8
Style Female Rod End
Maximum Outside Diameter (Decimal Inch) 2.4375
Maximum Outside Diameter (mm) 61.90
Maximum Outside Diameter (Inch) 2-7/16
Maximum Outside Diameter (Inch) 2.4370
Maximum Static Load Capacity (Pounds) 3950.0
Width (Inch) 1
Width (Decimal Inch) 1.0000
Width (mm) 25.40
Thread Size 3/8-24 UNF
Material Zinc Plated Carbon Steel
Shank Diameter (mm) 12.7000
Shank Diameter (Decimal Inch) 0.5000
Shank Diameter (Inch) 1/2
Raceway Material Sintered Oil Impregnated Bronze
Shank Length (Decimal Inch) 0.8120
Shank Length (mm) 20.600
Thread Direction Right Hand
Overall Length (Inch) 2.130
Overall Length (mm) 54.1000
Overall Length (Decimal Inch) 2.1300
$15.82
