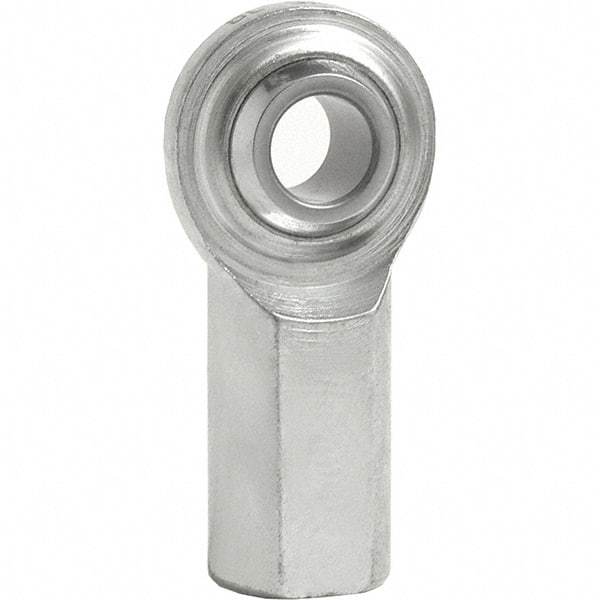

Tritan - 3/8" ID, 5,100 Lb Max Static Cap, Female Spherical Rod End - 3/8-24 UNF LH, 1/2" Shank Diam, 13/16" Shank Length, Zinc Plated Carbon Steel with PTFE Lined Chrome Steel Raceway - Benchmark Tooling

Tritan - 3/8" ID, 5,100 Lb Max Static Cap, Female Spherical Rod End - 3/8-24 UNF LH, 1/2" Shank Diam, 13/16" Shank Length, Zinc Plated Carbon Steel with PTFE Lined Chrome Steel Raceway


Item #: 98572738
Brand: Tritan
Model #: CFL 6T
Exact Tooling IR#: 04

Product Specifications
Inside Diameter (Decimal Inch) 0.3750
Inside Diameter (mm) 9.5000
Inside Diameter (Inch) 3/8
Style Female Rod End
Maximum Outside Diameter (Decimal Inch) 0.0000
Maximum Outside Diameter (mm) 0.00
Maximum Outside Diameter (Inch) 0
Maximum Outside Diameter (Inch) 0
Maximum Static Load Capacity (Pounds) 5100.0
Width (Inch) 1
Width (Decimal Inch) 1.0000
Width (mm) 25.40
Thread Size 3/8-24 UNF
Material Zinc Plated Carbon Steel
Shank Diameter (mm) 12.7000
Shank Diameter (Decimal Inch) 0.5000
Shank Diameter (Inch) 1/2
Raceway Material PTFE Lined Chrome Steel
Shank Length (Decimal Inch) 0.8120
Shank Length (mm) 20.600
Thread Direction Left Hand
Overall Length (Inch) 2.130
Overall Length (mm) 54.1000
Overall Length (Decimal Inch) 2.1300
$16.62
