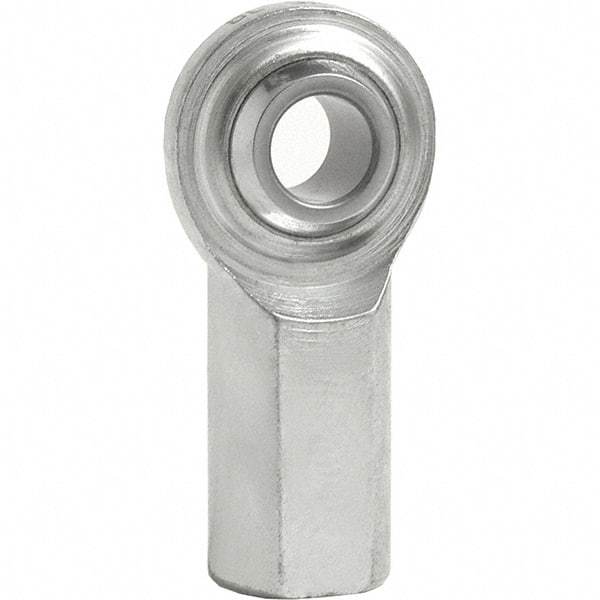

Tritan - 1/4" ID, 3,250 Lb Max Static Cap, Female Spherical Rod End - 1/4-28 UNF RH, 3/8" Shank Diam, 11/16" Shank Length, Zinc Plated Carbon Steel with PTFE Lined Chrome Steel Raceway - Benchmark Tooling

Tritan - 1/4" ID, 3,250 Lb Max Static Cap, Female Spherical Rod End - 1/4-28 UNF RH, 3/8" Shank Diam, 11/16" Shank Length, Zinc Plated Carbon Steel with PTFE Lined Chrome Steel Raceway


Item #: 98572423
Brand: Tritan
Model #: CF 4T
Exact Tooling IR#: 04

Product Specifications
Inside Diameter (Decimal Inch) 0.2500
Inside Diameter (mm) 6.4000
Inside Diameter (Inch) 1/4
Style Female Rod End
Maximum Outside Diameter (Decimal Inch) 0.0000
Maximum Outside Diameter (mm) 0.00
Maximum Outside Diameter (Inch) 0
Maximum Outside Diameter (Inch) 0
Maximum Static Load Capacity (Pounds) 3250.0
Width (Inch) 3/4
Width (Decimal Inch) 0.7500
Width (mm) 19.10
Thread Size 1/4-28 UNF
Material Zinc Plated Carbon Steel
Shank Diameter (mm) 9.5000
Shank Diameter (Decimal Inch) 0.3750
Shank Diameter (Inch) 3/8
Raceway Material PTFE Lined Chrome Steel
Shank Length (Decimal Inch) 0.6870
Shank Length (mm) 17.400
Thread Direction Right Hand
Overall Length (Inch) 1.690
Overall Length (mm) 42.9000
Overall Length (Decimal Inch) 1.6900
$12.50
