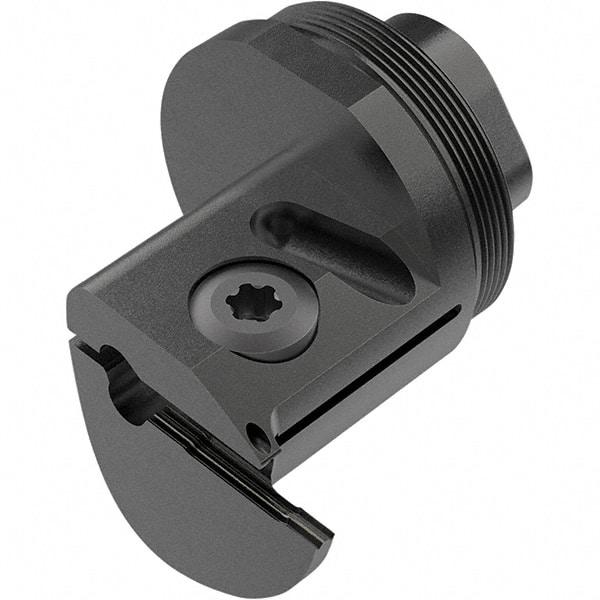

Seco - Modular Grooving Cutting Unit Heads System Size: GL25 Series Name: SteadyLine
Item #: 98572068
Brand: Seco
Model #: 03212509
Exact Tooling IR#: 04
Product Specifications
Modular Grooving Cutting Unit Heads; System Size: GL25 ; Series Name: SteadyLine ; Cutting Direction: Right Hand ; Modular Head Style: Cutting Head ; Insert Style: LC..1902.. ; Head Length/Projection (mm): 25.00
| System Size | GL25 |
| Series Name | SteadyLine |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Insert Style | LC..1902.. |
| Head Length/Projection (mm) | 25.00 |
| Through Coolant | Yes |
| Center to Cutting Edge (mm) | 19.00 |
| Minimum Hole Diameter (mm) | 32.00 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Depth of Cut (mm) | 6.00 |
