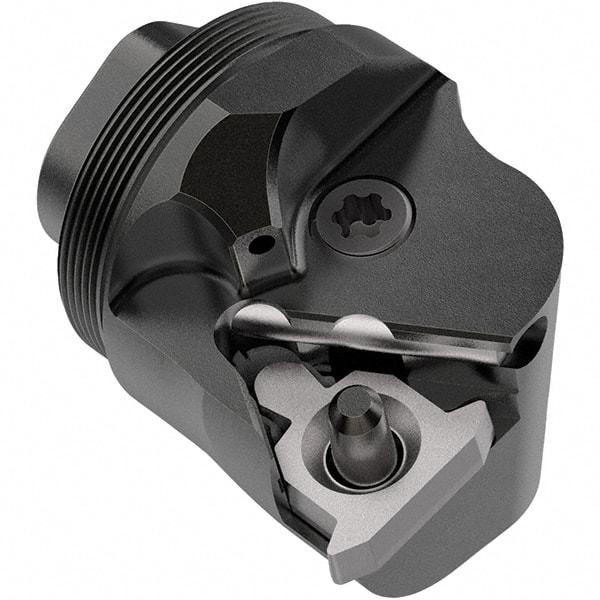

Seco - Modular Threading Cutting Unit Heads System Size: GL25 Series Name: SteadyLine
Item #: 98572019
Brand: Seco
Model #: 03212502
Exact Tooling IR#: 04
Product Specifications
Modular Threading Cutting Unit Heads; System Size: GL25 ; Series Name: SteadyLine ; Thread Type: Internal ; Cutting Direction: Left Hand ; Center to Cutting Edge (mm): 16.30 ; Head Length/Projection (mm): 25.00
| System Size | GL25 |
| Series Name | SteadyLine |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Center to Cutting Edge (mm) | 16.30 |
| Head Length/Projection (mm) | 25.00 |
| Insert Style | 16NL |
| Insert Holding Method | Lever Hole Clamping |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 25.00 |
