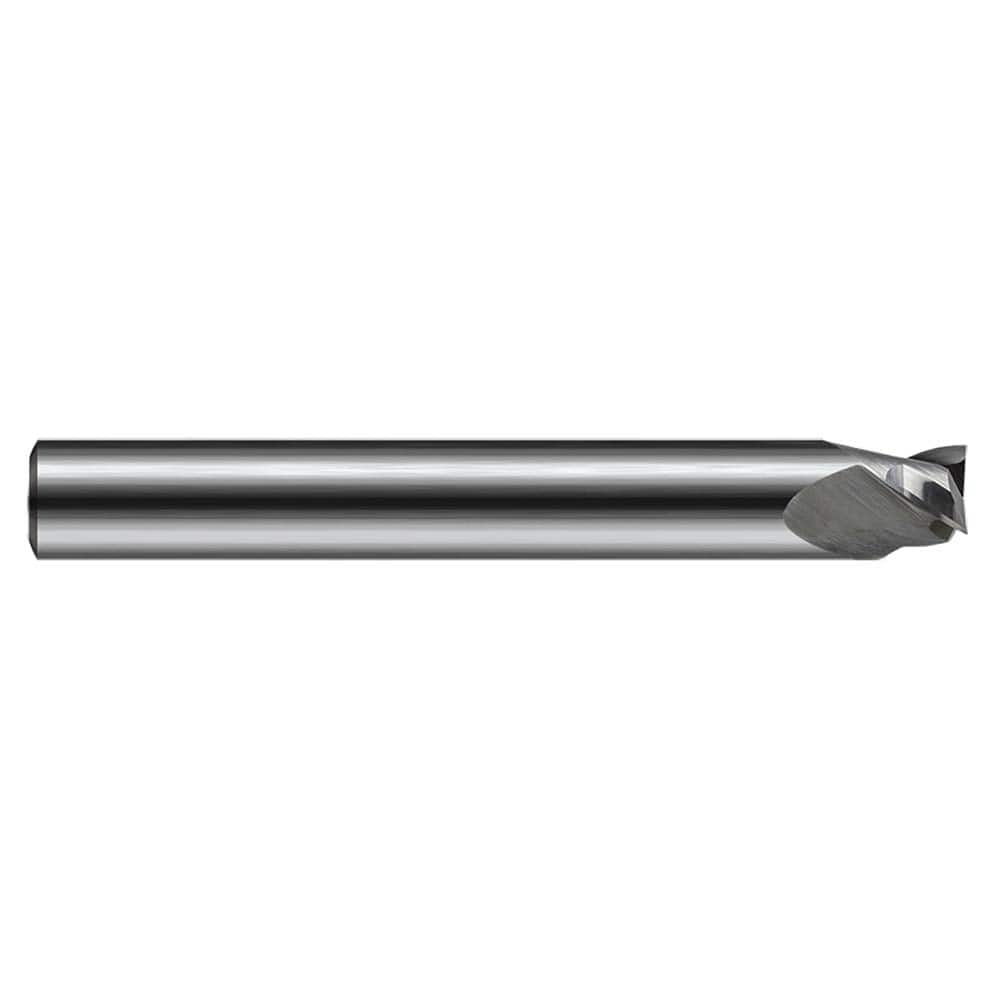

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Decimal Inch): 0.2100 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 3 ; Material: Solid Carbide ; Finish/Coating: Uncoated
Item #: 98561608
Brand: Harvey Tool
Model #: 862610
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Decimal Inch): 0.2100 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0100 ; Number of Flutes: 3 ; Material: Solid Carbide ; Finish/Coating: Uncoated
| Mill Diameter (Decimal Inch) | 0.2100 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (mm) | 3.0000 |
| Length of Cut (Decimal Inch) | 0.1180 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 35 |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | NonCenter Cutting |
| Flute Direction | Right Hand |
| Series/List | Picatinny Form Cutters - Picatinny Recoil Groove End Mills |
