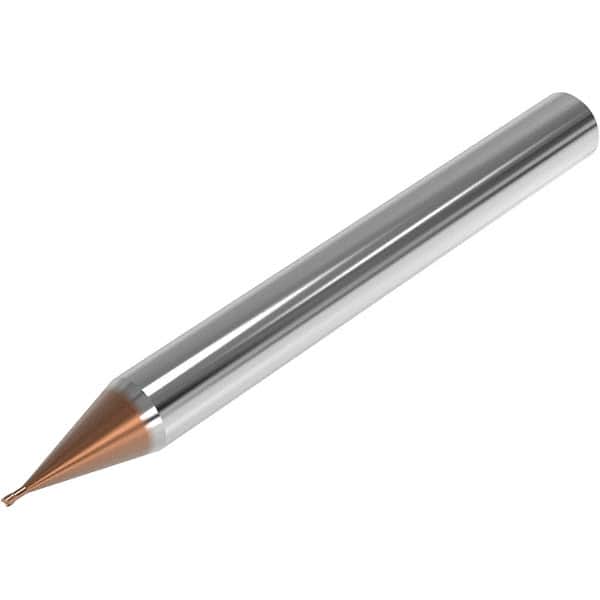

Seco - 1.5mm, 2 Flute, Single End, Solid Carbide, 0.05mm Corner Radius End Mill - 50mm OAL, 28° Helix, Right Hand Flute, 1.13mm LOC, Right Hand Cut, 2.25mm Extended Reach
Item #: 98547557
Brand: Seco
Model #: 03205161
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
HXT is a hard top coating that offers advanced thermal protection and high wear resistance. HXT is a proprietary coating exclusive to Seco Tools, Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 1.50 |
| Mill Diameter (Decimal Inch) | 0.0591 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.050 |
| Number of Flutes | 2 |
| Material | Solid Carbide |
| Finish/Coating | HXT |
| Length of Cut (mm) | 1.13 |
| Shank Diameter (mm) | 6.00 |
| Overall Length (mm) | 50.00 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 28 |
| Reach Length (mm) | 2.25 |
| Neck Diameter (mm) | 1.45 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Length Type | Stub |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Shank Type | Straight Shank |
| Series/List | JME142 |
| Chipbreaker | No |
