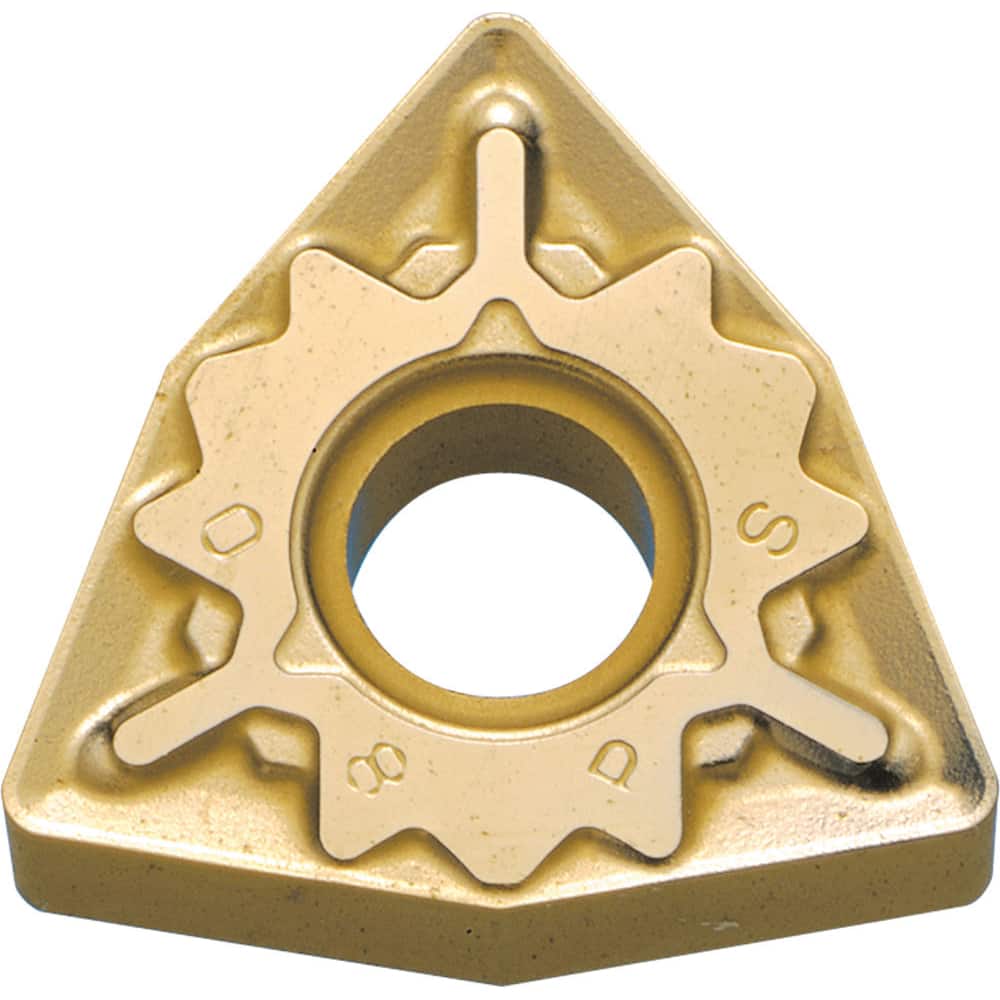

Kyocera - WNMG080404PS CA6525 Carbide Turning Insert
Item #: 98482169
Brand: Kyocera
Model #: 8822460
Product Specifications
| Insert Style | WNMG |
| Insert Size | 431 |
| Material | Carbide |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | CA6525 |
| Coating | TiCl2O3/TiN |
| Chip Breaker | PS |
| Hole Diameter (Decimal Inch) | 0.2031 |
| ISO Number | WNMG080404PS |
| Rake | Negative |
| Relief Angle | 0.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | WNMG431PSCA6525 |
| Primary Workpiece Material | M |
| Secondary Workpiece Material | S |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Shape | Trigon |
