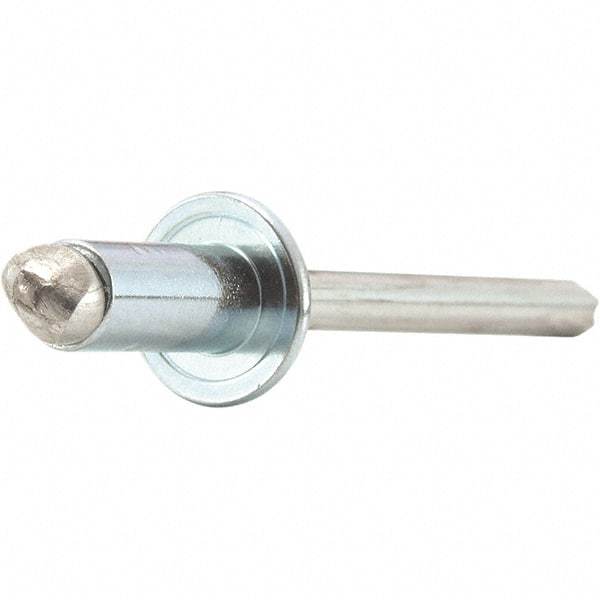

STANLEY Engineered Fastening - Size 4 Dome Head Steel Open End Blind Rivet - Steel Mandrel, 0.031" to 0.062" Grip, 1/8" Head Diam, 0.129" to 0.133" Hole Diam, 0.078" Body Diam
Item #: 98427479
Brand: STANLEY Engineered Fastening
Model #: POPSD41BS
Exact Tooling IR#: 04
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Dome head types have domed, cylindrical heads with low profiles. They are commonly used for their large bearing surface and versatility.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
Product Specifications | |
---|---|
Type | Open End |
Head Type | Dome |
Size Code | 4 |
Rivet Material | Steel |
Mandrel Material | Steel |
Minimum Grip (Decimal Inch) | 0.0310 |
Maximum Grip (Decimal Inch) | 0.0620 |
Head Diameter (Inch) | 1/8 |
Minimum Hole Diameter (Decimal Inch) | 0.1290 |
Maximum Hole Diameter (Decimal Inch) | 0.1330 |
Rivet Material Grade | C1006-1010 |
Mandrel Material Grade | Carbon Steel |
Body Diameter (Decimal Inch) | 0.0780 |
Shear Strength (Lb.) | 295 |
Tensile Strength (Lb.) | 425 |
Rivet Finish/Coating | Zinc-Plated |
