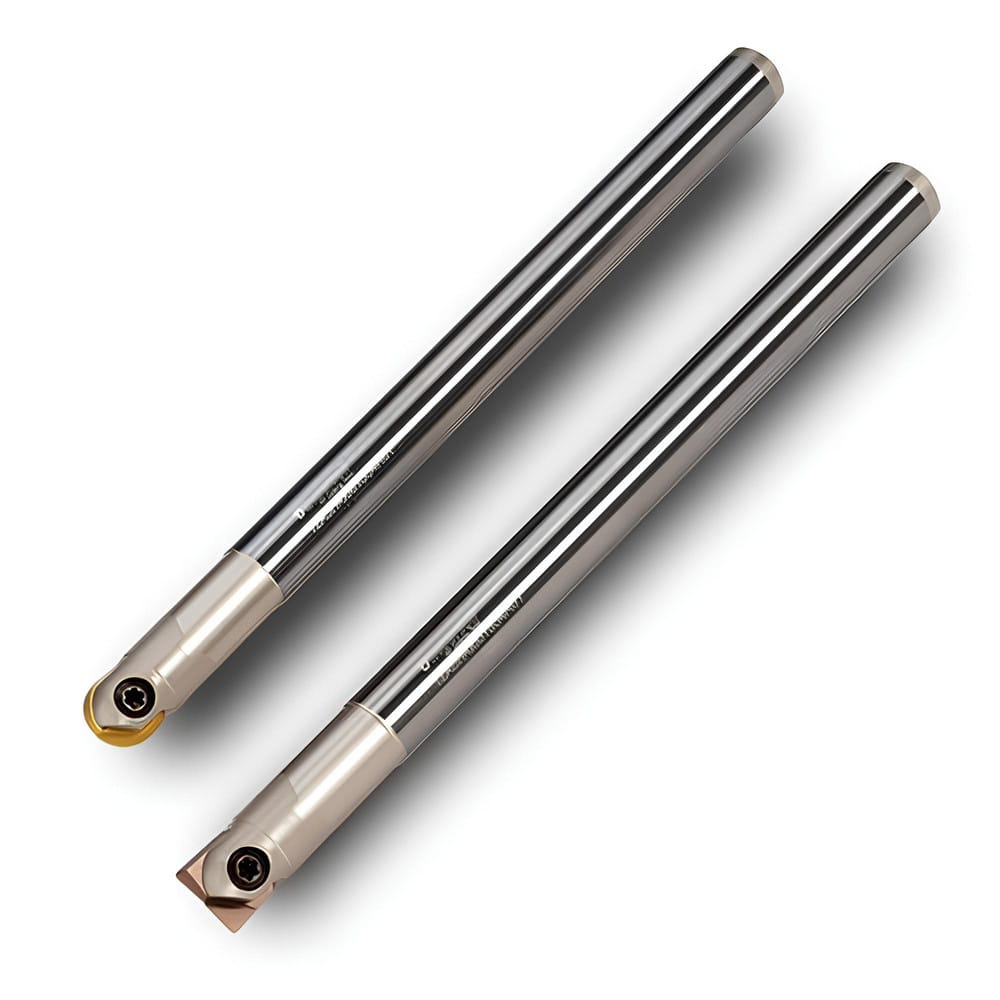

Indexable Ball Nose End Mills; Milling Diameter: 0.3750 in; Maximum Depth Of Cut: 0.1800 in; Shank Diameter: 0.3750 in; Shank Type: Cylindrical; Compatible Insert Style: GQHG; Compatible Insert Size Code: 0902; Toolholder Style: 12A5F; Series: 12A5; Overa
Item #: 98215122
Brand: Ingersoll Cutting Tools
Model #: 3031017
Product Specifications
| Milling Diameter | 0.3750 in |
| Maximum Depth Of Cut | 0.1800 in |
| Shank Diameter | 0.3750 in |
| Shank Type | Cylindrical |
| Compatible Insert Style | GQHG |
| Compatible Insert Size Code | 0902 |
| Toolholder Style | 12A5F |
| Series | 12A5 |
| Overall Length (mm) | 1.00 |
| Overall Length (Decimal Inch) | 1.00 |
| Overall Length (Inch) | 1.00 |
| Tool Application | Chamfering; Profile Milling; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | None |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.5000 in |
