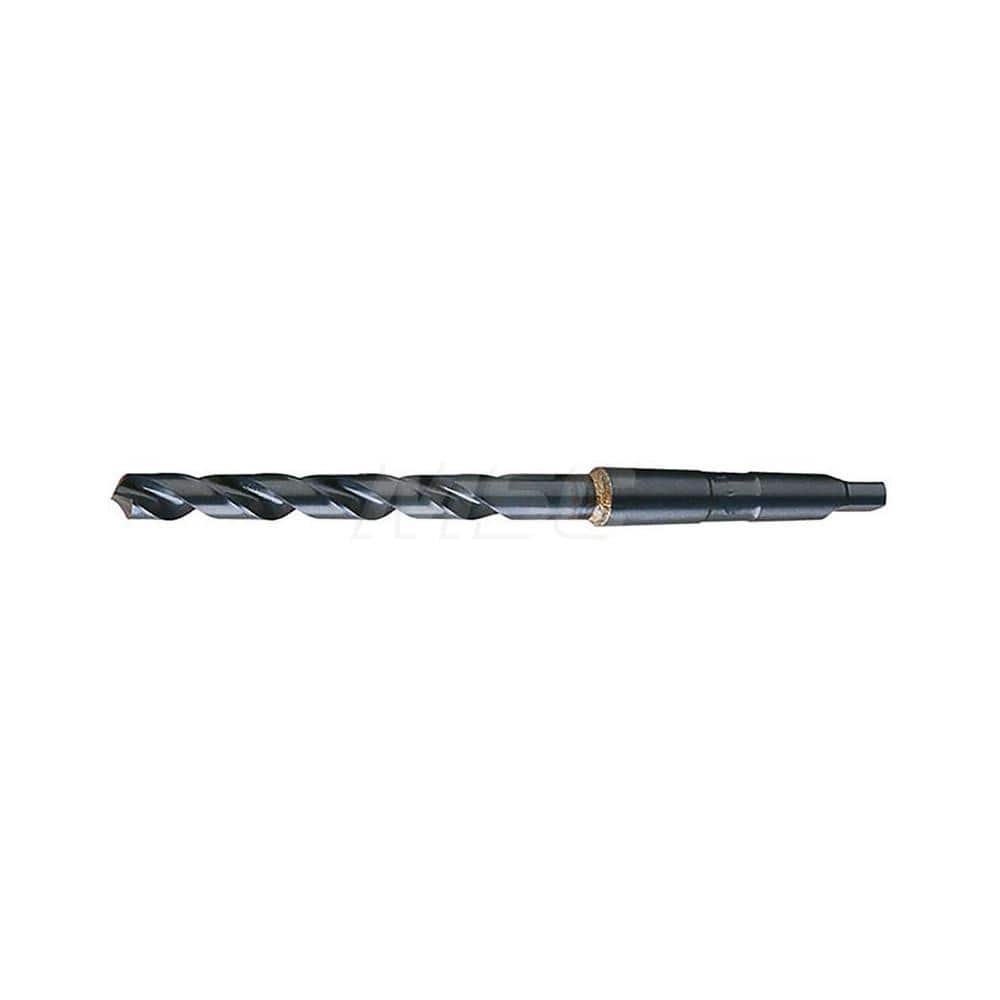

Taper Shank Drill Bit: 1.125″ Dia, 3MT, 118 °, High Speed Steel Oxide Finish, 11.75″ OAL, Radial Point, Spiral Flute
Item #: 98135536
Brand: Chicago-Latrobe
Model #: 53572
Product Specifications
| Drill Bit Size (Inch) | 1-1/8 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 3MT |
| Overall Length (Inch) | 11-3/4 |
| Coating/Finish | Oxide |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Point Type | Radial |
| Flute Length (Inch) | 7-1/8 |
| Drill Bit Size (Decimal Inch) | 1.1250 |
| Flute Length (Decimal Inch) | 7.1250 |
| Tool Performance | General Purpose |
| Spiral Type | Regular |
| Maximum Drilling Depth (Decimal Inch) | 4.5000 |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 11.7500 |
| Series | 110S |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0015 in |
| PSC Code | 5133 |
