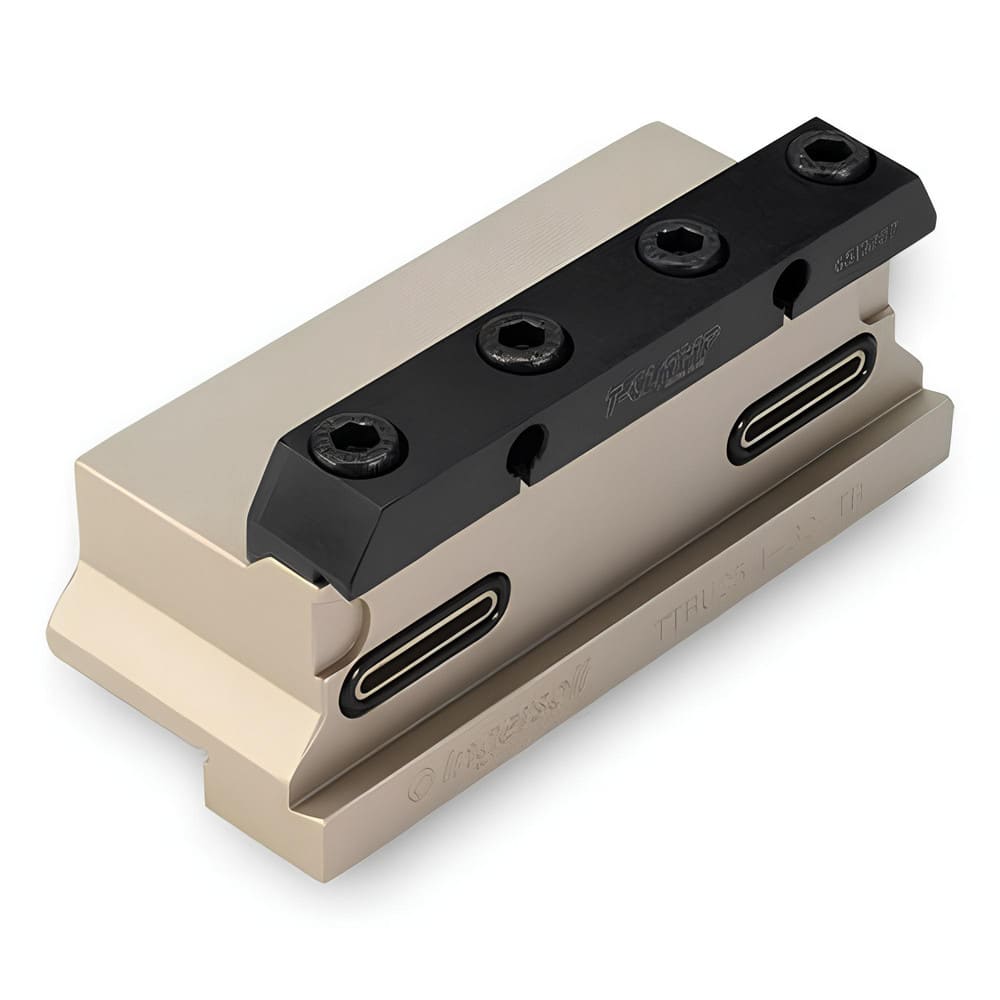

Indexable Cut-Off Blade Tool Blocks; Tool Block Style: TTBU; Compatible Blade Height: 1.2600 in; Compatible Blade Width: 0.0980 in; Shank Height: 0.7500 in; Shank Width: 0.7500 in; Overall Width: 2; Shoulder Height: 0.9800 in; Complete Blade Compatibility
Item #: 98127780
Brand: Ingersoll Cutting Tools
Model #: 2302499
Product Specifications
| Tool Block Style | TTBU |
| Compatible Blade Height | 1.2600 in |
| Compatible Blade Width | 0.0980 in |
| Shank Height | 0.7500 in |
| Shank Width | 0.7500 in |
| Overall Width | 2 |
| Shoulder Height | 0.9800 in |
| Complete Blade Compatibility | SFGB 32-TB |
| Overall Length (mm) | 3.44 |
| Overall Length (Decimal Inch) | 3.44 |
| Overall Length (Inch) | 3.44 |
| Cutting Tool Application | Grooving; Parting |
| Overall Height (Decimal Inch) | 2.0200 in |
| Overall Height (mm) | 2.0200 in |
| Primary Workpiece Material | Universal |
| Through Coolant | High Pressure |
| Reversible | Yes |
| Series | TTBU |
