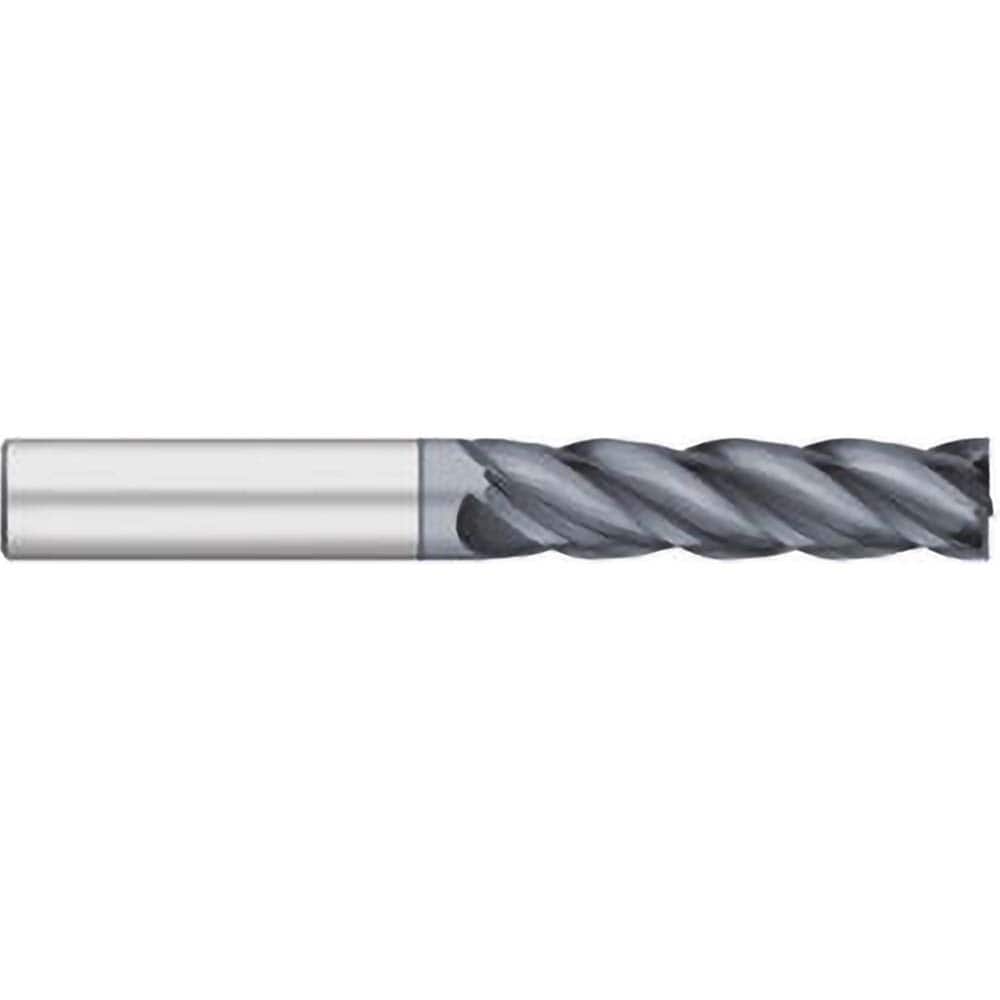

Square End Mill: 5/16'' Dia, 1-1/8'' LOC, 5/16'' Shank Dia, 3'' OAL, 4 Flutes, Solid Carbide Single End, AlCrO-MAX Finish, Upcut Flute, 38 ° Helix, Centercutting, RH Cut, RH Flute
Item #: 98057276
Brand: Titan USA
Model #: TC23204
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-1/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/16 |
| Finish/Coating | AlCrO-MAX |
| Overall Length (Inch) | 3 |
| Helix Angle | 38 |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.0000 - 1.2500 |
| Length of Cut (Decimal Inch) | 1.1250 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
| Flute Type | Upcut |
