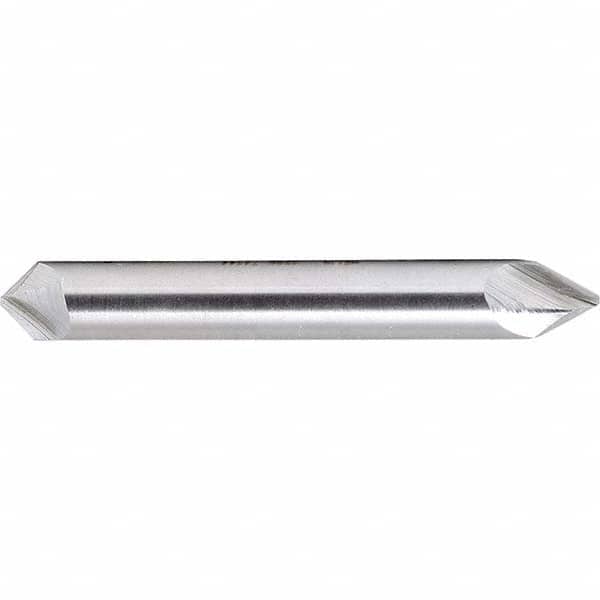

Melin Tool - 3/8" Diam 2 Flute Double End Cobalt Chamfer Mill
Item #: 57829889
Brand: Melin Tool
Model #: 19241
Features and Benefits
Cobalt offers wear resistance during high-speed machining. It is commonly used on high tensile alloys, cast iron and steel.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Cutter Head Diameter (Inch) | 3/8 |
| Included Angle B | 90 |
| Included Angle A | 82 |
| Chamfer Mill Material | Cobalt |
| Chamfer Mill Finish/Coating | Bright |
| Overall Length (Inch) | 2-3/4 |
| Shank Diameter (Inch) | 3/8 |
| Number of Flutes | 2 |
| End Type | Double |
| Cutting Direction | Right Hand |
| Tool Application | Chamfering |
| Material Application | Alloys; Cast Iron; Non-Ferrous Metals; Stainless Steel; Steel |
| Storage Unit Type | None |
| Cutter Head Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 2.7500 |
| Series/List | AM |
