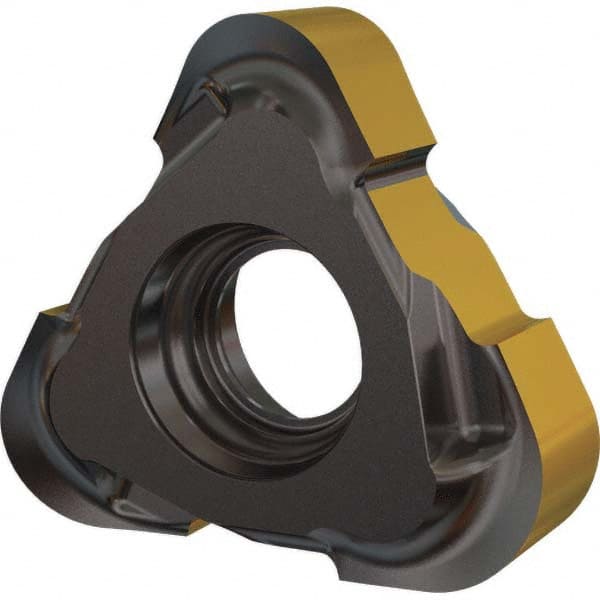

Iscar - TR6TNCU100430 IC882 Carbide Milling Insert
Item #: 97848691
Brand: Iscar
Model #: 3320880
Product Specifications
| Insert Style | TNCU |
| Insert Size | 100430 |
| Material | Carbide |
| Manufacturer's Grade | IC882 |
| Coating | TiAIN/TiN |
| Inscribed Circle (mm) | 7.30 |
| Inscribed Circle (Decimal Inch) | 0.2870 |
| Thickness (mm) | 4.20 |
| Thickness (Decimal Inch) | 0.1650 |
| Corner Radius (Decimal Inch) | 0.1180 |
| Corner Radius (mm) | 3.00 |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Cutter Series Compatibility | TR6 |
