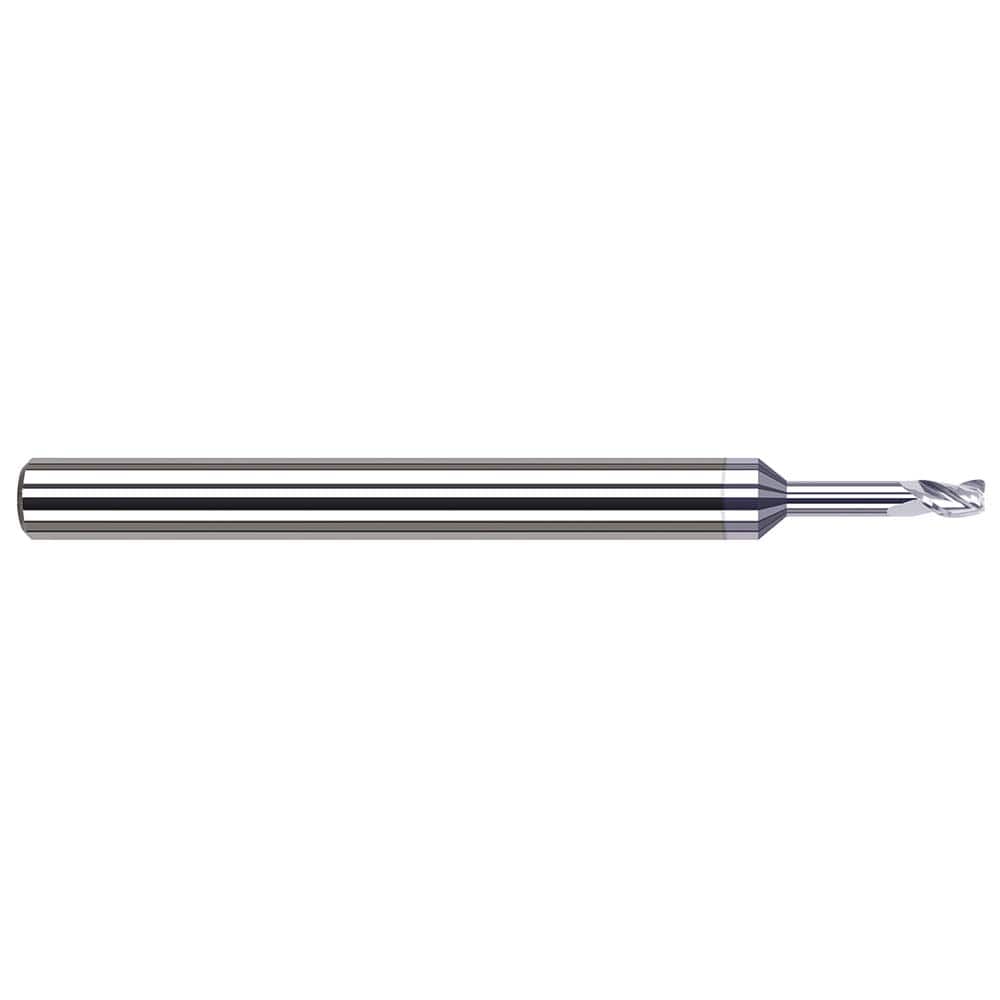

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0050 ; Number of Flutes: 3 ; Material: Solid Carbide
Item #: 97789168
Brand: Harvey Tool
Model #: 956612-C8
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0050 ; Number of Flutes: 3 ; Material: Solid Carbide
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0050 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | TiB2 |
| Length of Cut (Decimal Inch) | 0.2850 |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Inch) | 3 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 42 |
| Variable Helix | Yes |
| Reach Length (Inch) | 1 |
| Reach Length (Decimal Inch) | 1.0000 |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Variable Helix End Mills for Aluminum Alloys - Corner Radius - Long Reach, Stub Flute |
