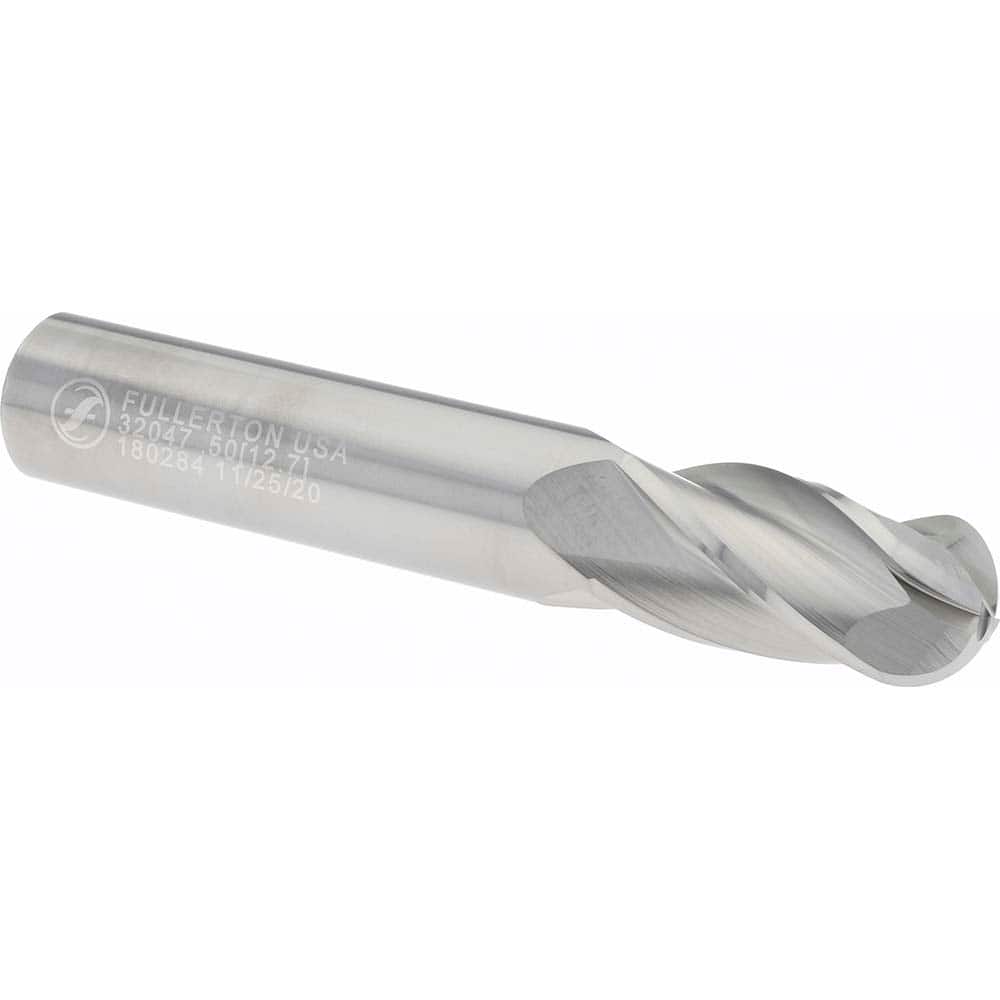

Ball End Mill: 0.5″ Dia, 1″ LOC, 4 Flute 3″ OAL, 1/2″ Shank Dia, Uncoated, Series 3200
Item #: 97734388
Brand: Made in USA
Model #: 32047
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1 |
| Chipbreaker | No |
| End Type | Ball; Single |
| Extended Reach | No |
| Undercutting | No |
| Length Type | Regular |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Mill Diameter Tolerance | +0.00 to -0.05 mm; +0.000 to -0.002 in |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 30.00 |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | 3200 |
| Number Of Flutes | 4 |
| Coating/Finish | Uncoated |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
