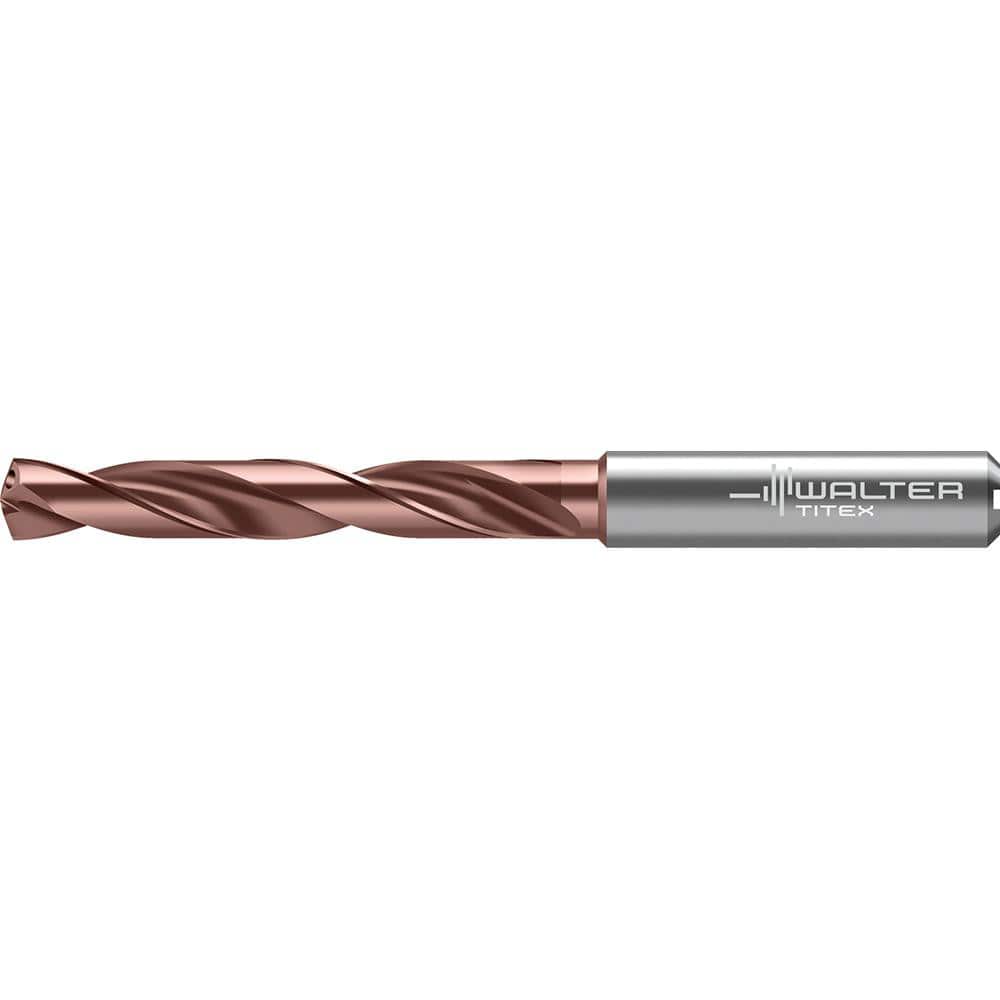

Jobber Length Drill Bit: 0.3594″ Dia, 140 ° N/A Carbide RH Cut, Spiral Flute, Series DC175-05-A1
Item #: 97712608
Brand: Walter-Titex
Model #: 8128110
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3594 |
| Drill Bit Size (Inch) | 23/64 |
| Drill Bit Material | Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlSiN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular Spiral |
| Flute Type | Spiral |
| Point Type | Split |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 4.0550 |
| Flute Length (Decimal Inch) | 2.4020 |
| Series | DC175-05-A1 |
| Tool Application | Drilling; Blind Hole; Stack Drilling |
| Flute Length x Diamter Ratio | 5xD |
| Maximum Drilling Depth (Decimal Inch) | 1.9290 |
| Shank Length (Decimal Inch) | 1.5750 |
| Drill Point Length (Decimal Inch) | 0.0650 |
| Drill Bit Diameter Tolerance | m7 |
