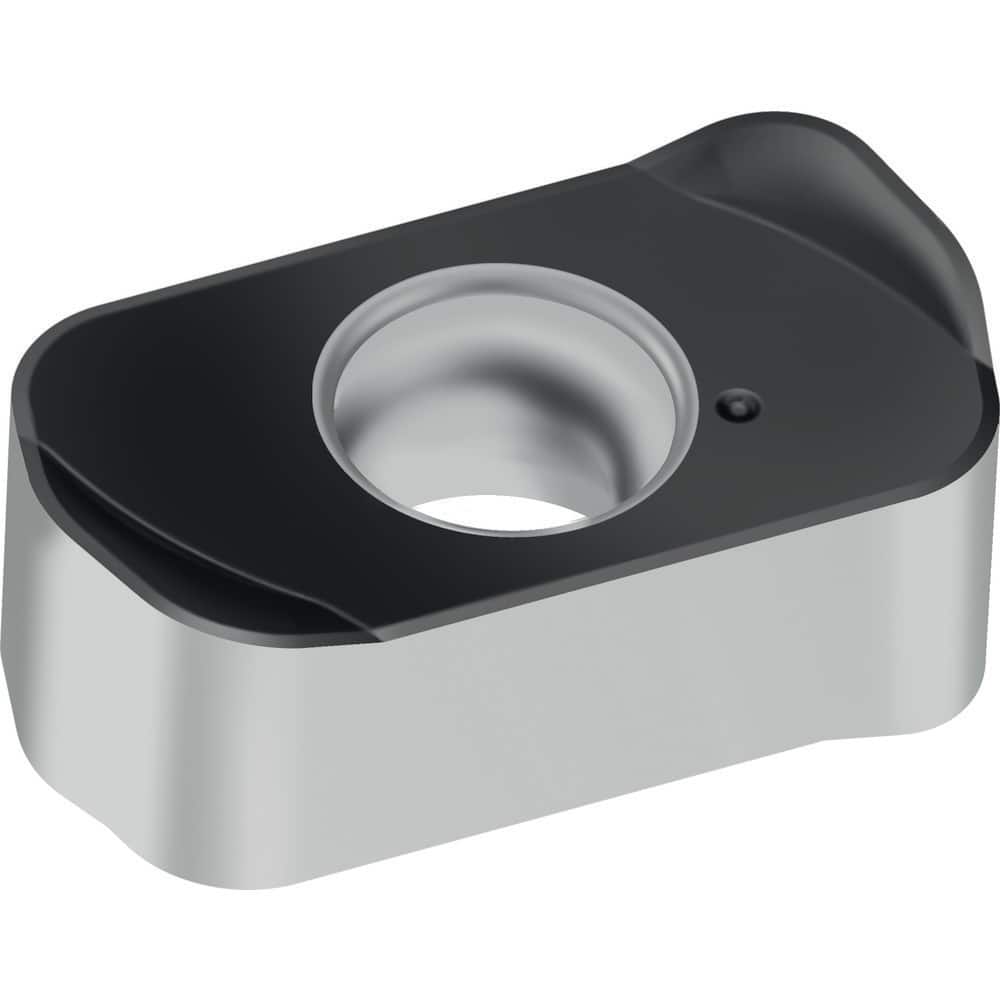

Milling Insert: WSM45X, Carbide N/A Finish, 0.2360″ OAW
Item #: 97478697
Brand: Walter
Model #: 7722666
Product Specifications
| Insert Style | ENMX |
| Insert Size Code | 08T316R |
| Insert Material | Carbide |
| Manufacturer Grade | WSM45X |
| Inscribed Circle (Decimal Inch) | 0.2360 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Insert Hand | Right Hand |
| Relief Angle | 0.000 |
| Series | ENMX08 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Diamond |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Chip Breaker | F47 |
| Coating/Finish | Al2O3 |
| Length | 11.00 |
| Width (Decimal Inch - 4 Decimals) | 0.2360 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1420 |
| Length (Decimal Inch - 4 Decimals) | 0.4330 |
