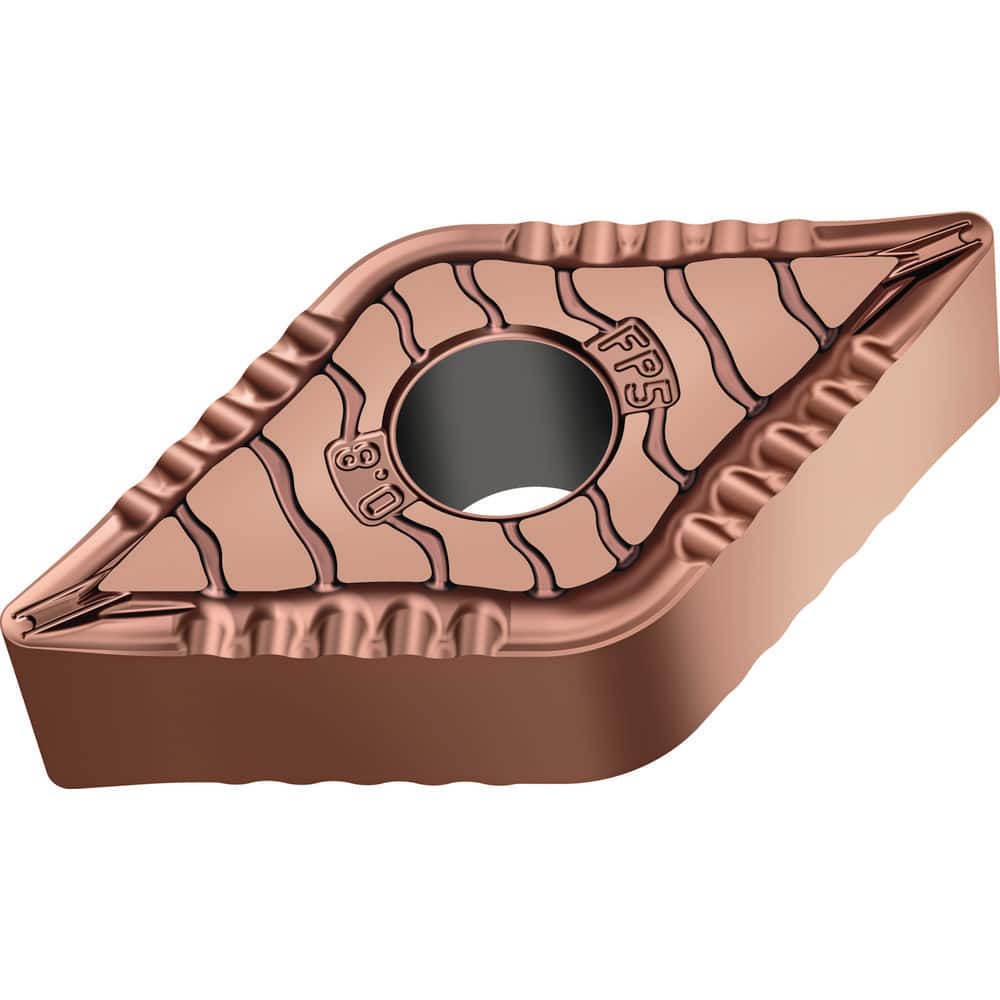

Turning Insert: DNMG330.5-FP5 WEP10C, Cermet TiCN & TiAlN Finish, Neutral, 0.4580″ Long, 3/8″ Inscribed Circle, 0.0080″ Corner Radius, 55.00 ° N/A Diamond, Series DNMG-FP5
Item #: 97478432
Brand: Walter
Model #: 8136983
Product Specifications
| Insert Style | DNMG |
| Insert Shape Code | D |
| Insert Size Code | 330.5 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Cermet |
| Manufacturer Grade | WEP10C |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Maximum Depth of Cut (Decimal Inch) | 0.4580 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1880 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 55.00 |
| Relief Angle | 0.000 |
| Series | DNMG-FP5 |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4580 |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Ansi Code | DNMG3(3)0.5FP5WEP10C |
| Iso Code | DNMG110402-FP5 WEP10C |
| Chip Breaker | FP5 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Width (Mm - 2 Decimals) | 9.53 |
| Coating/Finish | TiCN; TiAlN |
 | |
| MSC Part # | 97478432 |
| Mfr Part # | 8136983 |
| Country of OriginCountry of Origin is subject to change | Germany |
