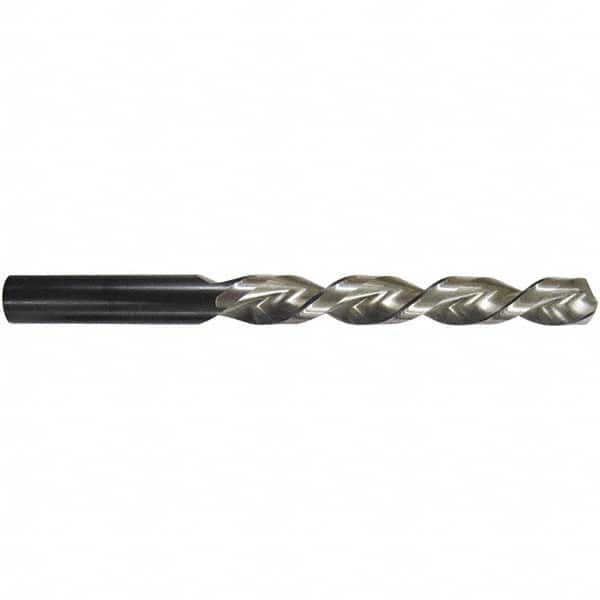

Jobber Length Drill Bit: 0.065″ Dia, 130 °, High Speed Steel Bright/Uncoated, 1.6929″ OAL, Left Hand Cut, Parabolic Flute, Straight-Cylindrical Shank
Item #: 97426381
Brand: Guhring
Model #: 9005500016500
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0650 |
| Drill Bit Size (mm) | 1.65 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Left Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0650 |
| Overall Length (mm) | 43.00 |
| Overall Length (Decimal Inch) | 1.6929 |
| Flute Length (mm) | 20.00 |
| Flute Length (Decimal Inch) | 0.7874 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 1.65 |
| Maximum Drilling Depth (Decimal Inch) | 0.7874 |
| Maximum Drilling Depth (mm) | 20.00 |
| Shank Length (mm) | 23.00 |
| Shank Length (Decimal Inch) | 0.9055 |
| Drill Bit Diameter Tolerance | +0.000 to -0.014 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Specification Number | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Drill Bit Size Range (mm) | 0.00 - 2.00 |
| Material Grade | M2 |
| Specification Designation | DIN |
