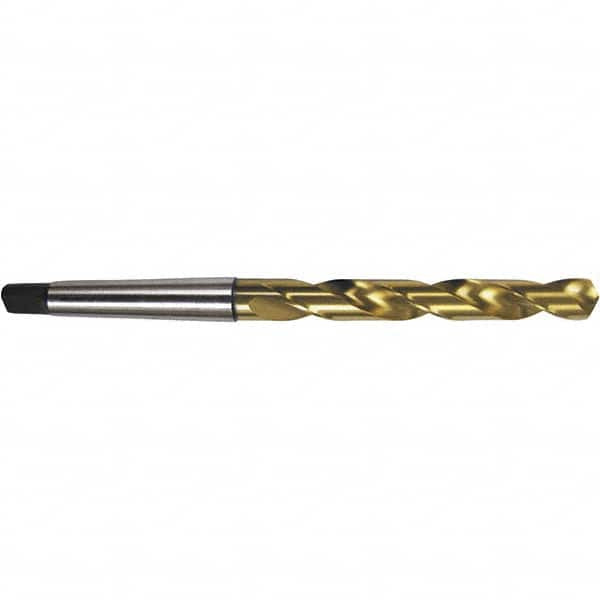

Taper Shank Drill Bit: 0.7656″ Dia, 2MT, 118 °, High Speed Steel TiN Finish, 5.5118″ Flute Length, 9.3701″ OAL, Standard Point, Spiral Flute
Item #: 97414130
Brand: Guhring
Model #: 9006540194500
Product Specifications
| Drill Bit Size (Inch) | 49/64 |
| Tool Material | High Speed Steel |
| Shank Taper Designation | 2MT |
| Overall Length (mm) | 238.00 |
| Coating/Finish | TiN |
| Flute Type | Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Point Type | Standard |
| Flute Length (mm) | 140.00 |
| Drill Bit Size (Decimal Inch) | 0.7656 |
| Flute Length (Decimal Inch) | 5.5118 |
| Tool Performance | General Purpose |
| Spiral Type | Regular |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 9.3701 |
| Series | 654 |
| Standards | DIN 345 |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.000 to -0.033 mm |
