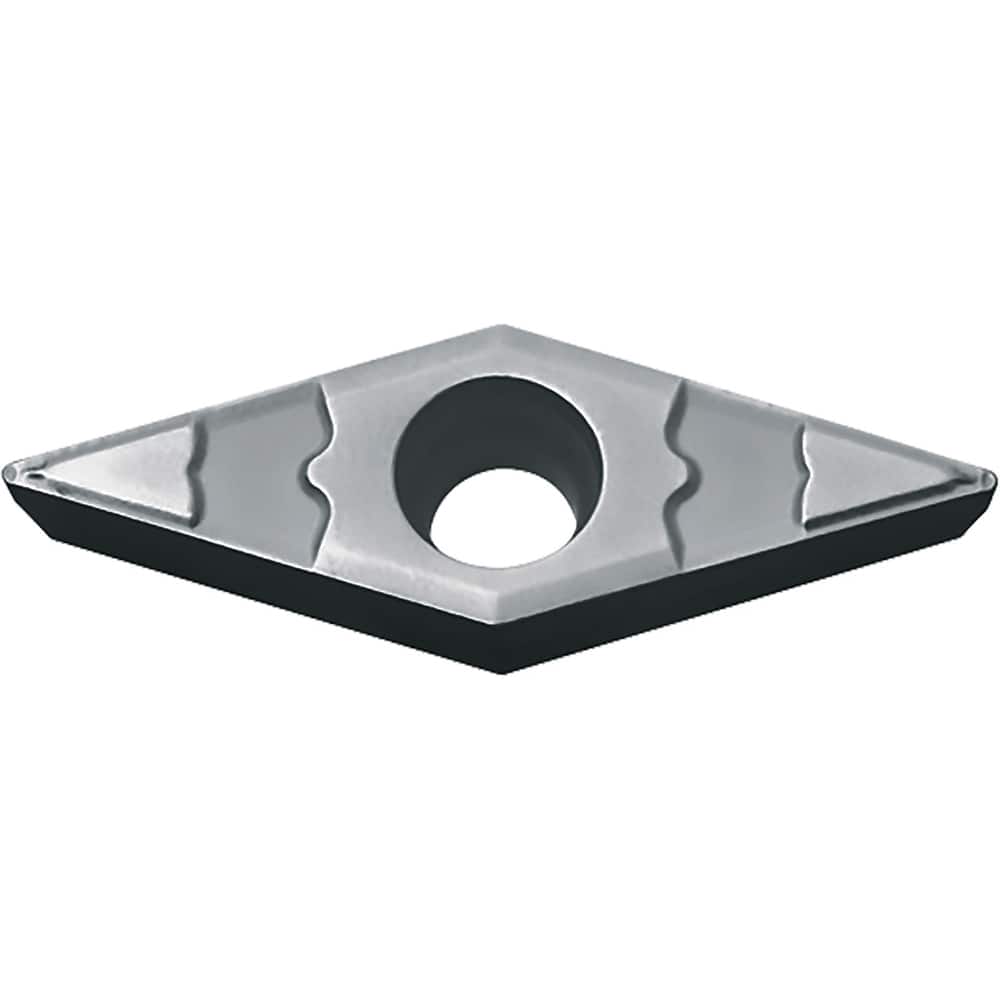

VBMT160404GP TN620 Cermet Turning Insert Uncoated, Neutral, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 0.1874″ Thick, 35° Diamond, Series HYBCERM
Item #: 97043376
Brand: Kyocera
Model #: TSR07555
Product Specifications
| Insert Style | VBMT |
| Insert Shape Code | V |
| Insert Size Code | 331 |
| Insert Shape | Diamond |
| Clearance Code | B |
| Tolerance Code | M |
| Manufacturer Grade | TN620 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 35.0 |
| Relief Angle | 5 |
| Series | HYBCERM |
| Coating Process | Uncoated |
| Rake | Positive |
| Primary Workpiece Material | P |
| Manufacturers Catalog Number | VBMT331GPTN620 |
| Chip Breaker | T |
| Multi-Use Tool | Yes |
| Coating/Finish | Uncoated |
| Multi-Use Application | External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing |
