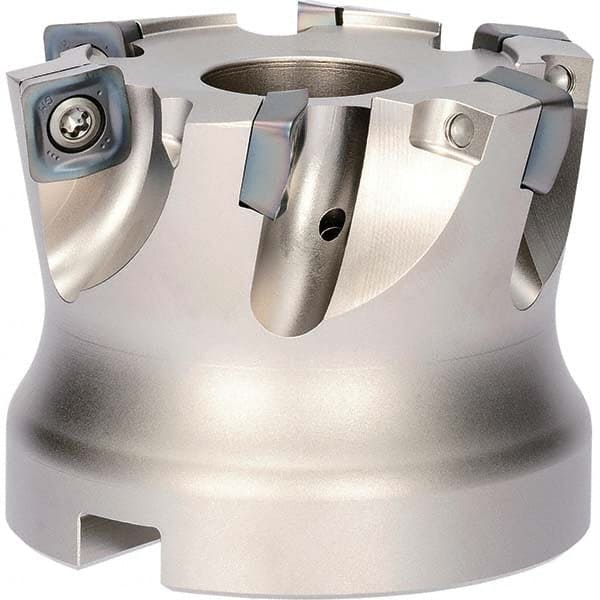

Kyocera - Indexable High-Feed Face Mills Cutting Diameter (Decimal Inch): 1.9685 Cutting Diameter (mm): 50.00
Item #: 10625739
Brand: Kyocera
Model #: 8860917
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 1.9685 ; Cutting Diameter (mm): 50.00 ; Maximum Depth of Cut (mm): 5.00 ; Arbor Hole Diameter (mm): 22.00 ; Overall Height (mm): 50.00 ; Series: MFH-Raptor
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (mm) | 50.00 |
| Series | MFH-Raptor |
| Cutter Style | MFH |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | SOMT 14 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 8800 |
| Number of Flutes | 4 |
| Through Coolant | Yes |
| Complete Insert Compatibility | SOMT140520ER-GM; SOMT140520ER-LD; SOMT140514ER-FL |
| Keyway Width (mm) | 10.40 |
| Manufacturers Catalog Number | MFH 050R-14-4T-M |
