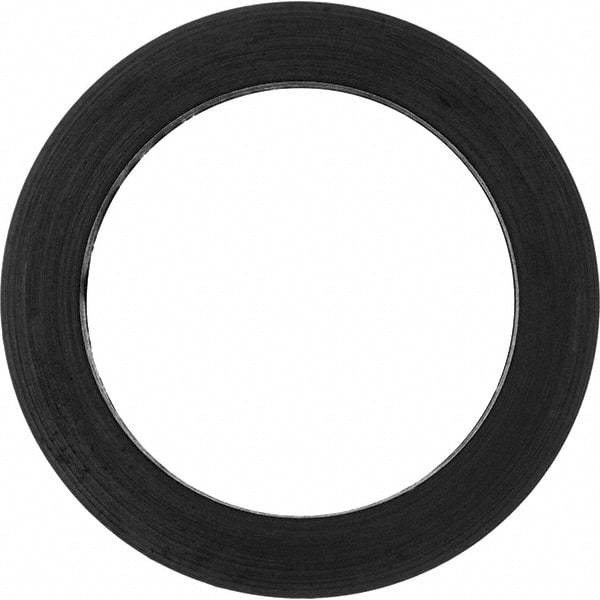

Value Collection - 15/16" OD Buna-N O-Ring - 1/16" Thick, Square Cross Section, Durometer 70
Item #: 96994652
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Square cross-section shapes offer good high pressure seals, but are best used in static applications. They can be used as a direct replacement for a round O-ring.
Buna-N, also known as nitrile rubber (NBR), is made of a synthetic rubber that has anti-microbial properties and is resistant to chemicals, oils, solvents, greases and petroleum-based fluids. It is resistant to abrasions, cuts, punctures, slashes and snags.
| Product Specifications | |
|---|---|
| Cross Section Shape | Square |
| Material | Buna-N |
| Dash Number | 019 |
| System of Measurement | Inch |
| Durometer | 70 |
| Durometer (Shore A) | 70A |
| Inside Diameter (Inch) | 13/16 |
| Inside Diameter (Decimal Inch) | 0.8010 |
| Outside Diameter (Inch) | 15/16 |
| Outside Diameter (Decimal Inch) | 0.9410 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0700 |
| Maximum Temperature (F) | 250.000 |
