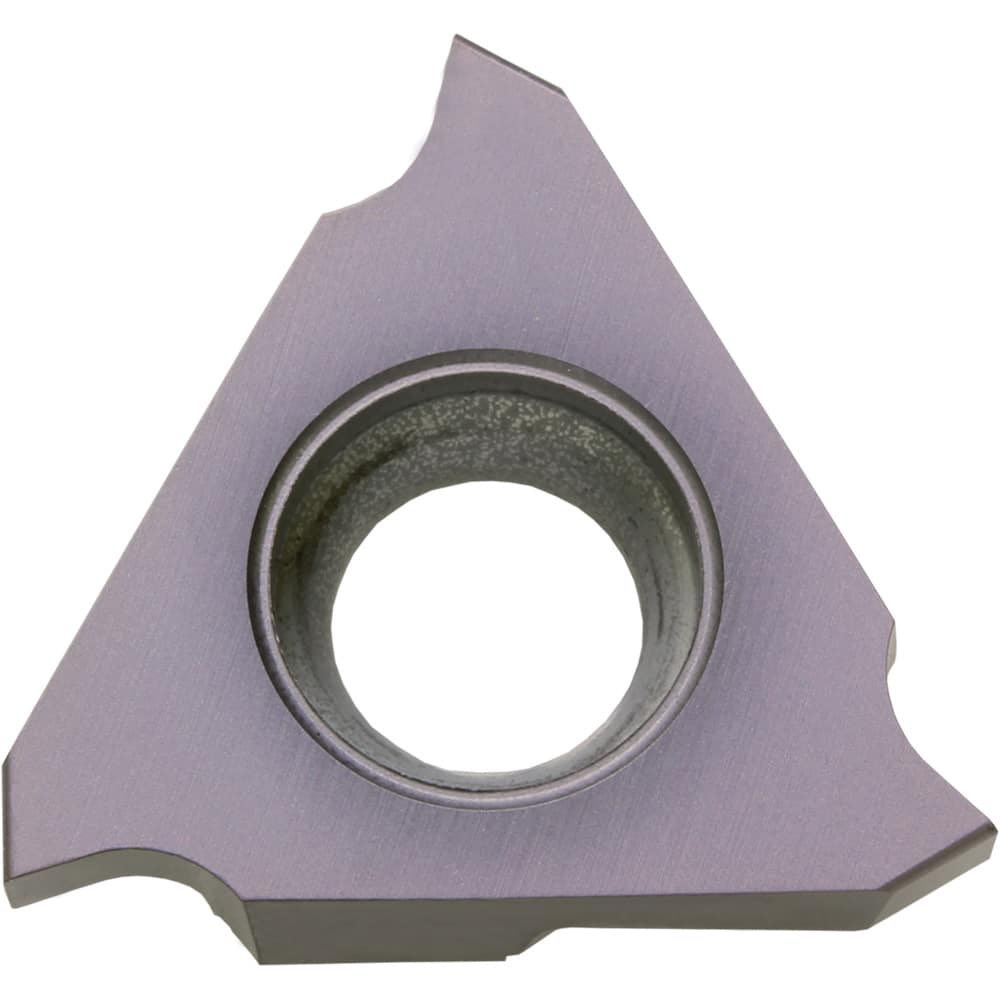

Grooving Insert: GBA32 PR1215, Solid Carbide Megacoat, Left Hand, 1 mm Cutting Width, 2 mm Max Depth, Series GBA
Item #: 96924584
Brand: Kyocera
Model #: TKH17119
Product Specifications
| Insert Style | GBA |
| Insert Size | 32 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1215 |
| Cutting Width (mm) | 1.00 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Holding Method | Screw; Clamp |
| Cutting Height (mm) | 3.18 |
| Insert Hand | Left Hand |
| Corner Radius (mm) | 0.05 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Rake | Positive |
| Multi-use Tool | No |
| Series | GBA |
| Coating Process | PVD |
| Manufacturers Catalog Number | GBA32L100005PR1215 |
| Inscribed Circle (Inch) | 3/8 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Coating/Finish | Megacoat |
| Number Of Cutting Edges | 3 |
| For Use With | KGBASR?-16; KIGBAR?-16; KGBASR?-3; KGBAL?-3; KIGBAR?-3; KGBAL?-16 |
| Insert Thickness | 3.18 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
