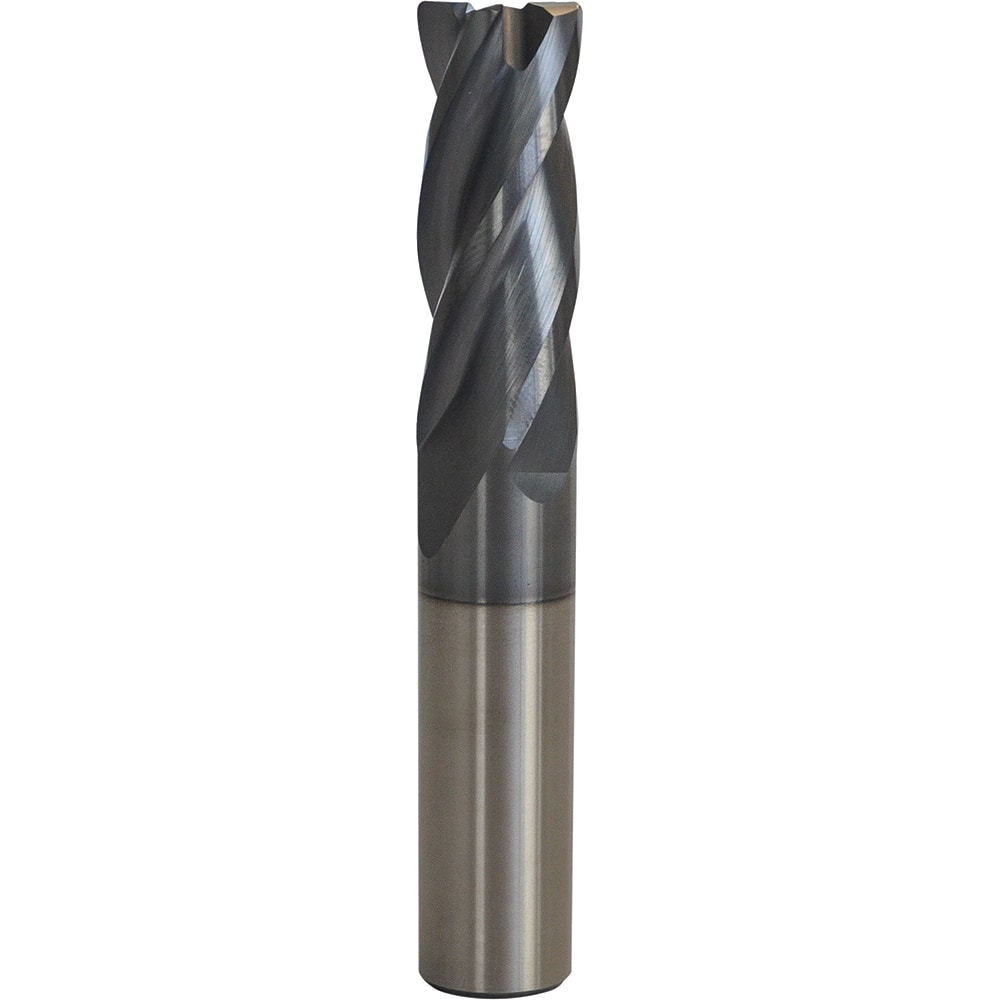

Accupro - 3/16" Diam 4 Flute Carbide 0.03" Corner Radius End Mill
Item #: 96901137
Brand: Accupro
Model #: 6504449
Product Specifications
| Mill Diameter (mm) | 4.76 |
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.03 |
| Number of Flutes | 4 |
| Material | Carbide |
| Finish/Coating | AlCrTiN |
| Length of Cut (mm) | 7.9375 |
| Length of Cut (Inch) | 5/16 |
| Length of Cut (Decimal Inch) | 0.3125 |
| Shank Diameter (mm) | 4.7625 |
| Overall Length (mm) | 50.8000 |
| Overall Length (Inch) | 2 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Helix Angle | Variable |
| Variable Index | Yes |
| Variable Helix | Yes |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Minimum Helix Angle | 30 |
| Maximum Helix Angle | 32 |
| Length Type | Regular |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (mm) | +0.000 to -0.025 |
| Mill Diameter Tolerance (Decimal Inch) | +0.000 to -0.001 |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Extended Reach | No |
| Overall Length Tolerance (Decimal Inch) | +0.040 to -0.000 |
| Shank Type | Straight |
| TIR Maximum (Decimal Inch) | 0.0058 |
| TIR Maximum (mm) | 0.63 |
| Series/List | VS |
| Chipbreaker | No |
