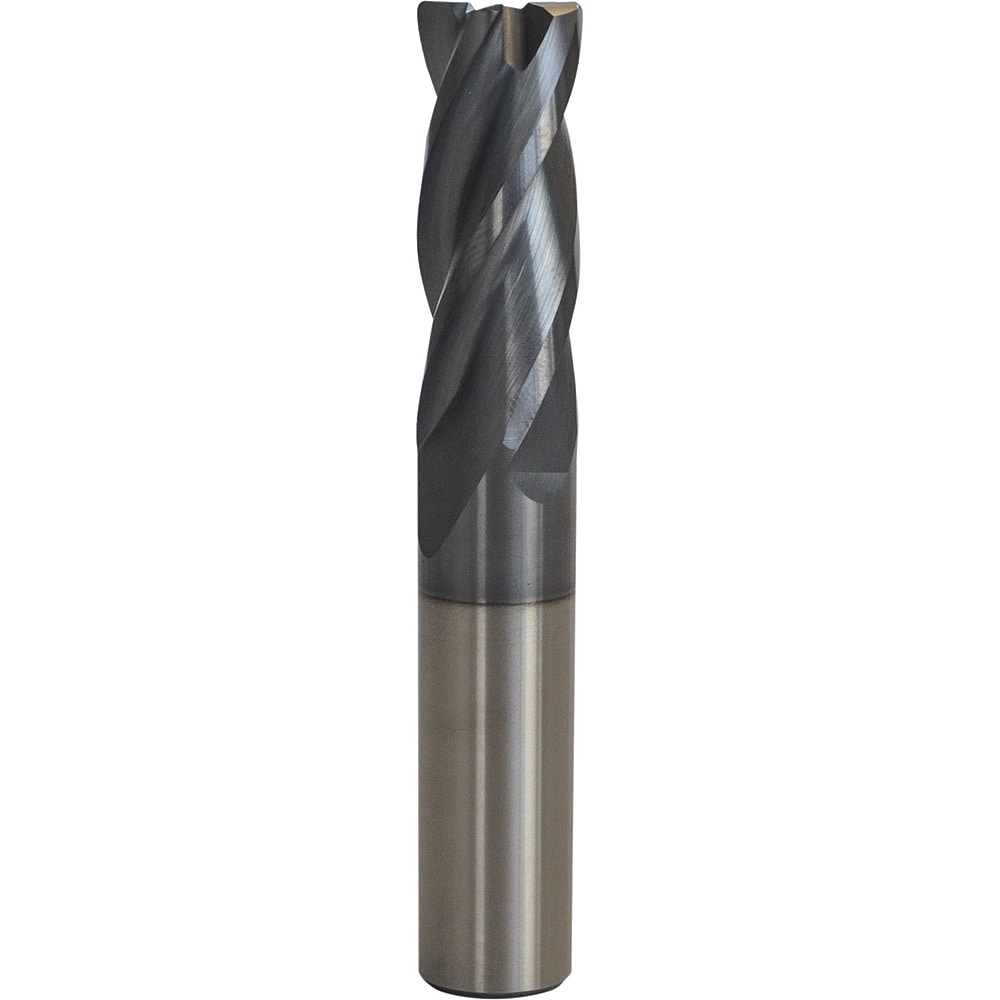

Accupro - 1/8", 1/4" LOC, 1/8" Shank Diam, 1-1/2" OAL, 4 Flute Carbide Square End Mill
Item #: 96900964
Brand: Accupro
Model #: 6504433
Product Specifications
| Mill Diameter (mm) | 3.17 |
| Mill Diameter (Inch) | 1/8 |
| Mill Diameter (Decimal Inch) | 0.1250 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 6.3500 |
| Length of Cut (Inch) | 1/4 |
| Length of Cut (Decimal Inch) | 0.2500 |
| Material | Carbide |
| Finish/Coating | AlCrTiN |
| Shank Diameter (mm) | 3.1750 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Single or Double End | Single |
| Overall Length (mm) | 38.1000 |
| Overall Length (Inch) | 1.5 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | Variable |
| Variable Helix | Yes |
| Variable Index | Yes |
| Flute Type | Helical |
| Length Type | Regular |
| Helix Style | Medium |
| Mill Diameter Tolerance (mm) | +0.00 to -0.03 |
| Mill Diameter Tolerance (Decimal Inch) | +0.000 to -0.001 |
| Material Grade | Micrograin |
| Minimum Helix Angle | 30 |
| TIR Maximum (mm) | 0.08 |
| TIR Maximum (Decimal Inch) | 0.0005 |
| Maximum Helix Angle | 32 |
| Chipbreaker | No |
| Extended Reach | No |
| Overall Length Tolerance (Decimal Inch) | +0.040/-0.000 |
| Shank Diameter Tolerance (mm) | h6 |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Special Item Information | Plunge Gashing |
| Series/List | VS |
