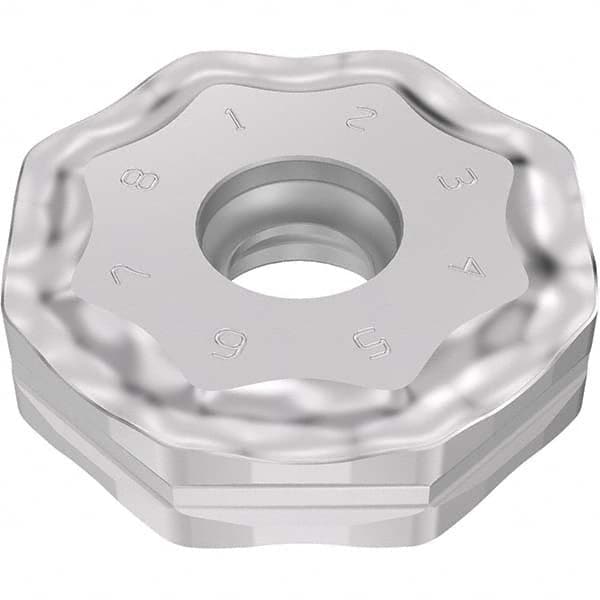

Seco - ONMU090520ANTN-M15 Carbide Milling Insert
Item #: 96591037
Brand: Seco
Model #: 03273007
Product Specifications
| Insert Style | ONMU |
| Insert Size | 090520 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | MP2501 |
| Coating | TiCN/Al2O3 |
| Length (mm) | 22.00 |
| Inscribed Circle (mm) | 22.00 |
| Thickness (mm) | 5.80 |
| Hole Diameter (mm) | 5.60 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Rake | Negative |
| Coating Process | CVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | M15 |
