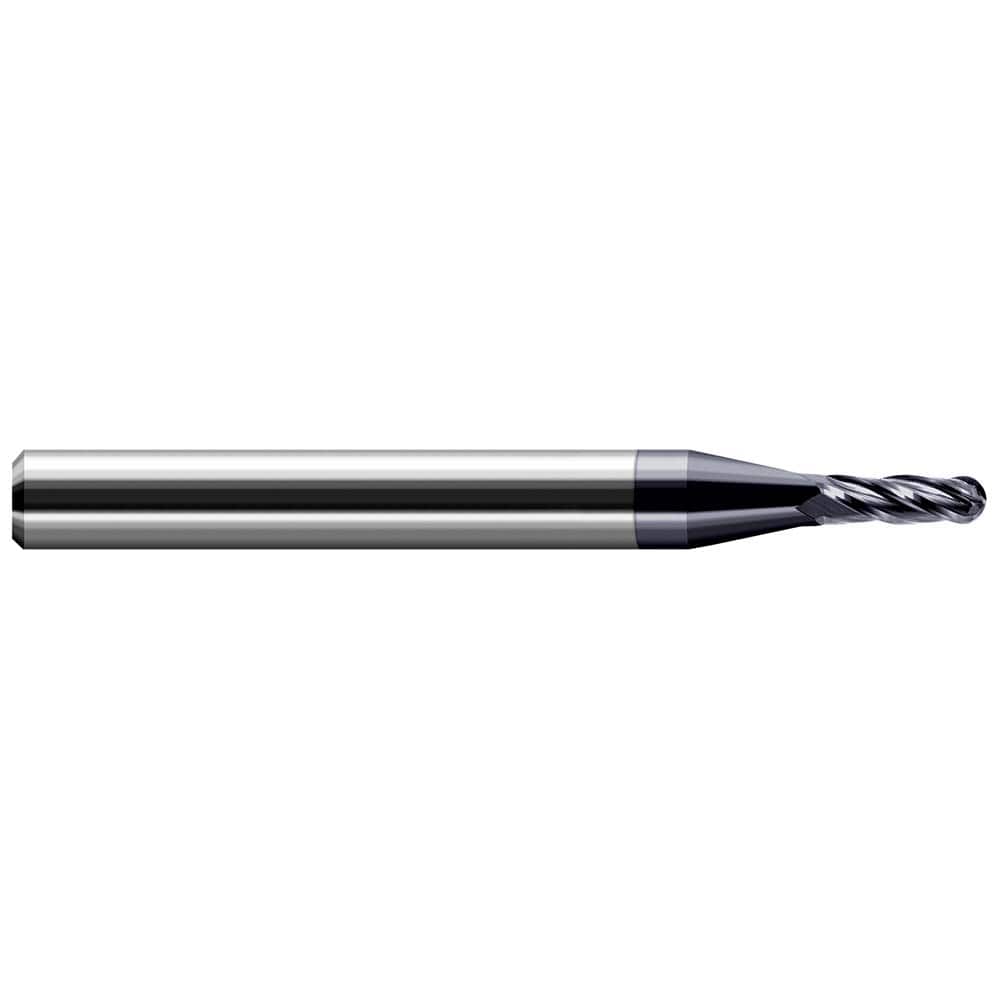

Ball End Mill: 0.03″ Dia, 0.09″ LOC, 3 Flute, Solid Carbide 1-1/2″ OAL, 1/8″ Shank Dia, 30 ° Helix, AlTiN Coated, Single End
Item #: 96576210
Brand: Harvey Tool
Model #: 835930-C3
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0300 |
| End Mill Material | Solid Carbide |
| Helix Angle | 30 |
| Length Of Cut Range (Decimal Inch) | 0.0500 to 0.1000 |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Centercutting | No |
| Single Or Double End | Single |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0900 |
