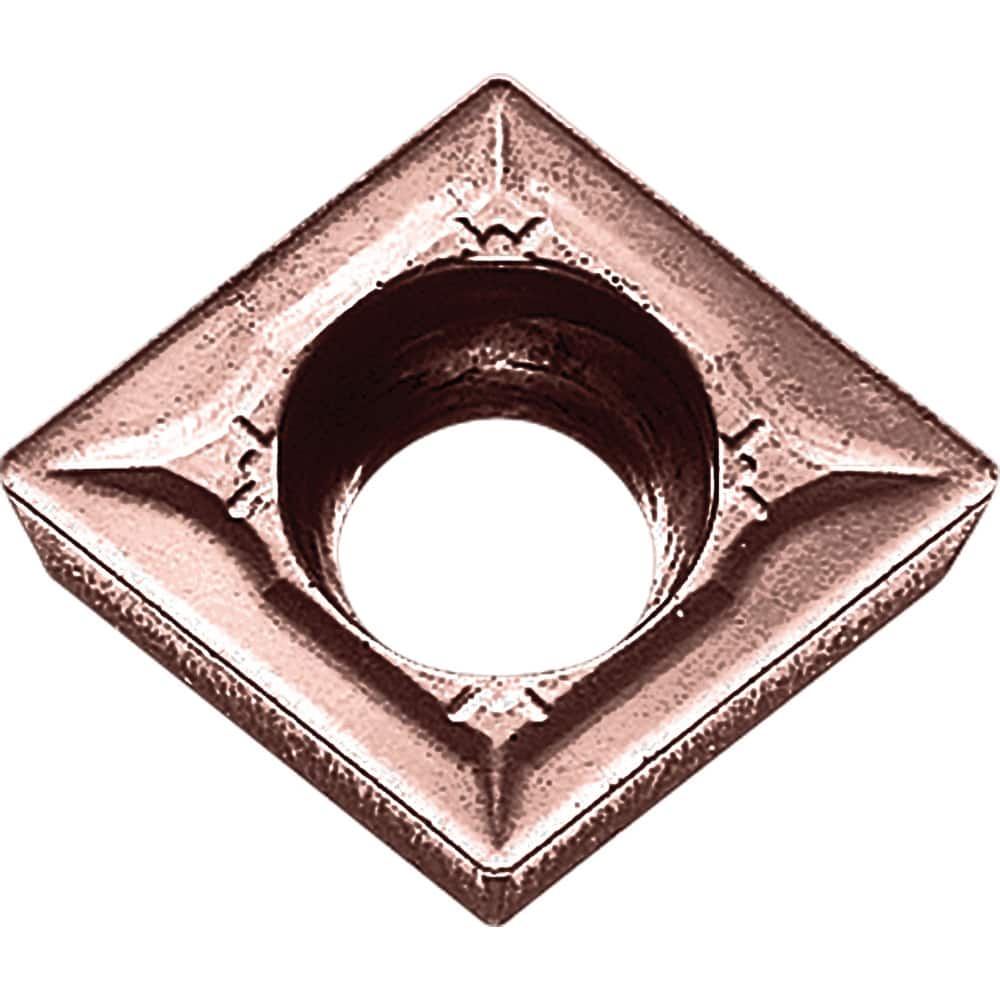

CCMT120408GK CA320 Carbide Turning Insert TiCl2O3/Ti Finish, Neutral, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 0.1874″ Thick, 80° Diamond, Series CA3
Item #: 96560289
Brand: Kyocera
Model #: TME00531
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Manufacturer Grade | CA320 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CA3 |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | K |
| Secondary Workpiece Material | K |
| Manufacturers Catalog Number | CCMT432GKCA320 |
| Chip Breaker | T |
| Multi-Use Tool | Yes |
| Coating/Finish | TiCl2O3; Ti |
| Multi-Use Application | External Turning; Facing; Internal Facing; Boring |
