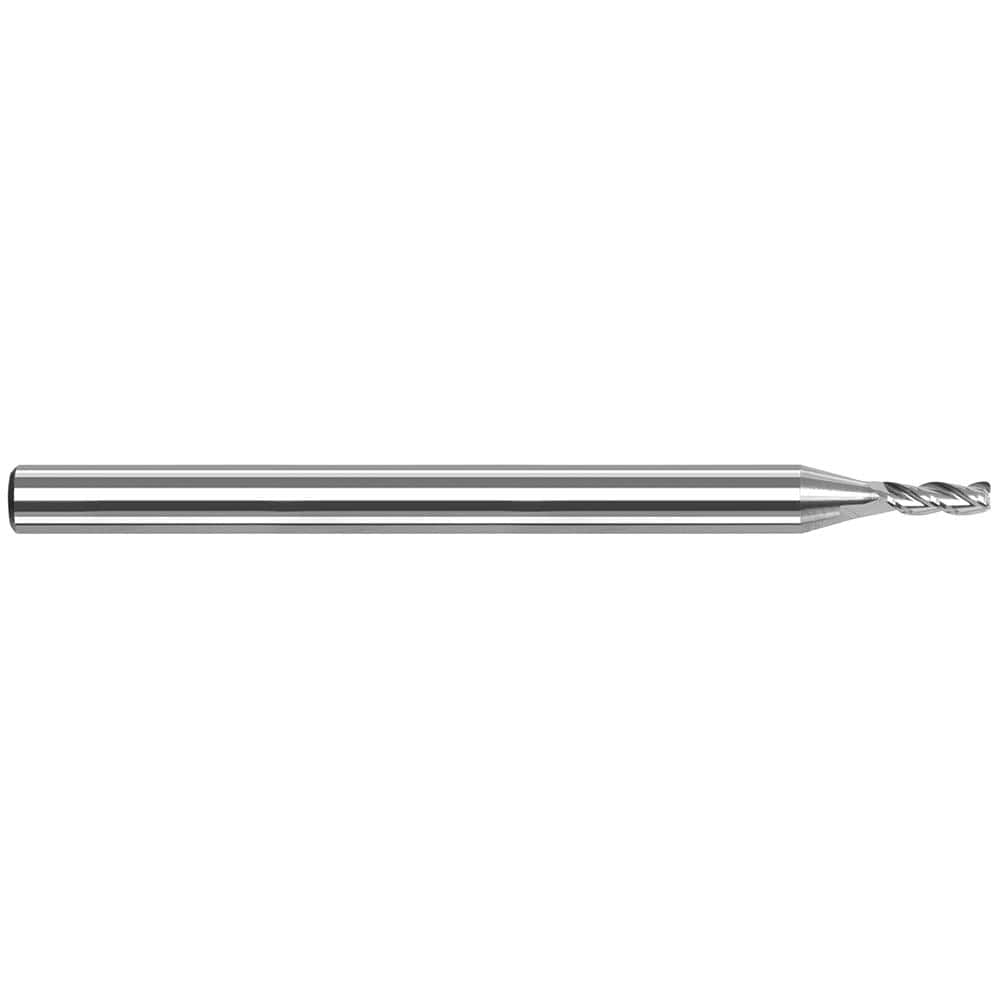

Harvey Tool - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/16 ; Mill Diameter (Decimal Inch): 0.0620 ; End Type: Corner Radius ; Corner Radius (mm): 0.50 ; Corner Radius (Decimal Inch): 0.0200 ; Number of Flutes: 3
Item #: 96525415
Brand: Harvey Tool
Model #: 925862
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/16 ; Mill Diameter (Decimal Inch): 0.0620 ; End Type: Corner Radius ; Corner Radius (mm): 0.50 ; Corner Radius (Decimal Inch): 0.0200 ; Number of Flutes: 3
| Mill Diameter (Inch) | 1/16 |
| Mill Diameter (Decimal Inch) | 0.0620 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.50 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Number of Flutes | 3 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (Decimal Inch) | 0.1860 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 42 |
| Variable Helix | Yes |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
| Series/List | Variable Helix End Mills for Aluminum Alloys - Corner Radius |
