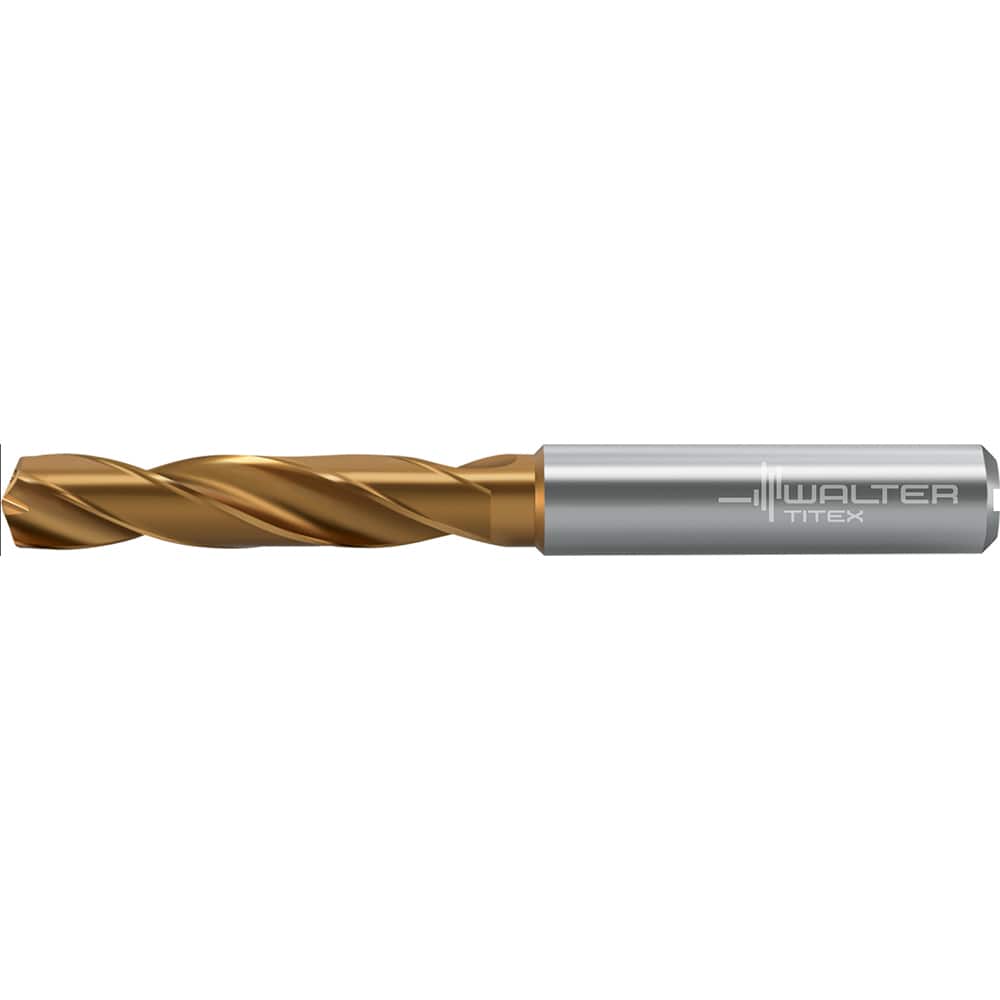

Screw Machine Length Drill Bit: 0.1772″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Straight-Cylindrical Shank, Series DC160-03-A1
Item #: 96272570
Brand: Walter-Titex
Model #: 7378101
Product Specifications
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Drill Bit Size (Decimal Inch) | 0.1772 |
| Overall Length (Decimal Inch) | 2.5980 |
| Series | DC160-03-A1 |
| Drill Length Type | Screw Machine |
| Point Type | X?treme Evo |
| Maximum Drilling Depth (Decimal Inch) | 0.6690 |
| Shank Length (Decimal Inch) | 1.4170 |
| Drill Point Length (Decimal Inch) | 0.0320 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal Advance |
| Drill Bit Diameter Tolerance | m7 |
| Standards | ISO; DIN |
| Flute Length (Decimal Inch) | 0.9450 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Material Grade | WJ30ET |
