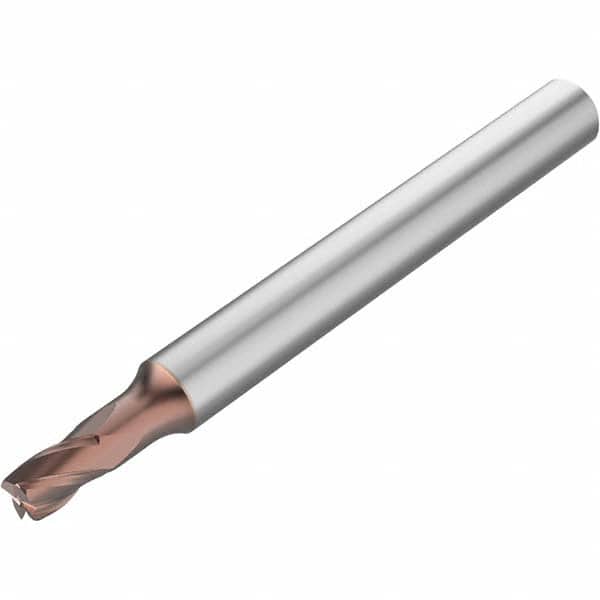

Corner Radius End Mill: 0.1575″ Dia, 4 Flutes, Solid Carbide 28 ° Helix, HXT Coated, Corner Radius End, Series JH770
Item #: 96240569
Brand: Seco
Model #: 03320784
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575 |
| Mill Diameter (mm) | 4.00 |
| Corner Radius (mm) | 0.20 |
| Length of Cut (mm) | 6.00 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Length Type | Short |
| Flute Type | Spiral |
| Helix Angle | 28 |
| Shank Type | Straight-Cylindrical |
| Centercutting | No |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 3.05 |
| Mill Diameter Tolerance | -0.052000 mm |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | JH770 |
| TIR Maximum (mm) | 0.01 |
| Single Or Double End | Single |
| Coating/Finish | HXT |
