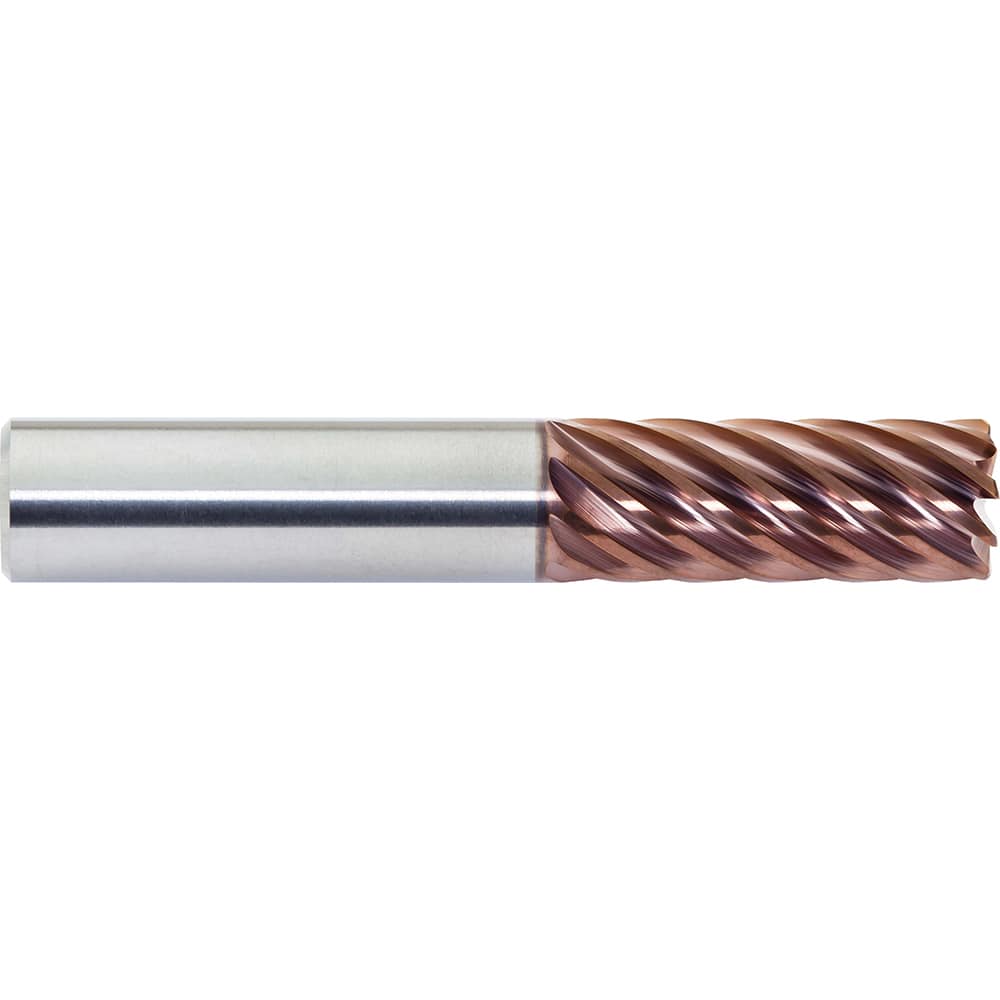

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; End Type: Corner Radius ; Corner Radius (Inch): 0.02 ; Corner Radius (Decimal Inch): 0.02 ; Number of Flutes: 9
Item #: 96235502
Brand: M.A. Ford
Model #: 38050013AX
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; End Type: Corner Radius ; Corner Radius (Inch): 0.02 ; Corner Radius (Decimal Inch): 0.02 ; Number of Flutes: 9
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| End Type | Corner Radius |
| Corner Radius (Inch) | 0.02 |
| Corner Radius (Decimal Inch) | 0.02 |
| Number of Flutes | 9 |
| Material | Solid Carbide |
| Finish/Coating | Altima Xtreme |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 3 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 37 |
| Variable Index | No |
| Variable Helix | No |
| Material Grade | Solid Carbide |
| Single or Double End | Single |
| Length Type | Regular |
| Centercutting | No |
| Flute Direction | Right Hand |
