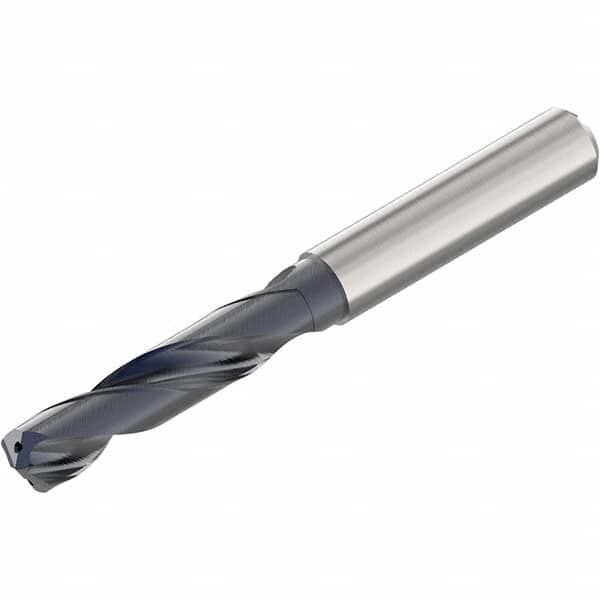

Screw Machine Length Drill Bit: 0.4371″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SD1103A
Item #: 96222682
Brand: Seco
Model #: 02898348
Product Specifications
| Drill Bit Size (mm) | 11.10 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Bit Size (Decimal Inch) | 0.4371 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0157 |
| Shank Diameter (mm) | 12.00 |
| Series | SD1103A |
| Web Thinning | Web-Thinned |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Shank Length (mm) | 45.00 |
| Drill Point Length (mm) | 2.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | Universal |
| Drill Bit Diameter Tolerance | m7 |
| Standards | DIN |
| Flute Length (mm) | 55.00 |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Drill Bit Size Range (mm) | 11.00 to 13.50 |
