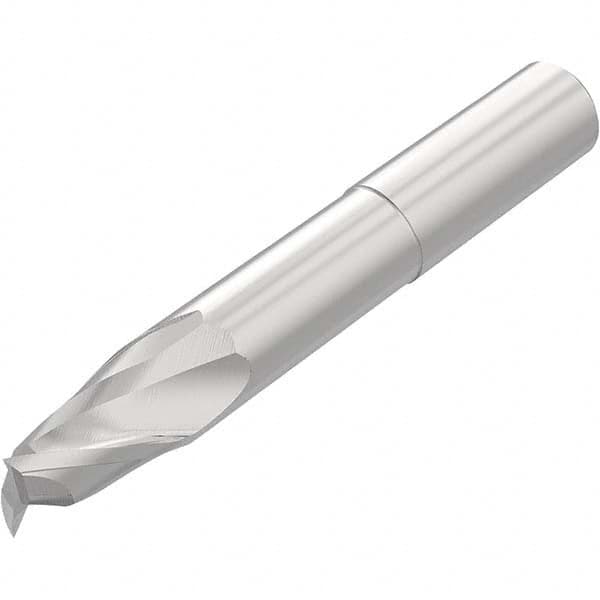

Square End Mill: 1'' Dia, 1-1/4'' LOC, 1'' Shank Dia, 5'' OAL, 2 Flutes, Solid Carbide Single End, Uncoated, Helical Flute, 30 ° Helix, Centercutting, RH Cut, RH Flute, Series AN230
Item #: 96218102
Brand: Niagara Cutter
Model #: 03302627
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 5 |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | Yes |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 5.0000 |
| Flute Direction | Right Hand |
| Flute Type | Helical |
| Helix Style | Medium |
| Length Type | Long |
| Mill Diameter Tolerance | +0.0020 in |
| Neck Length (Decimal Inch) | 1.8750 |
| Reach Length (Inch) | 3-1/8 |
| Series | AN230 |
