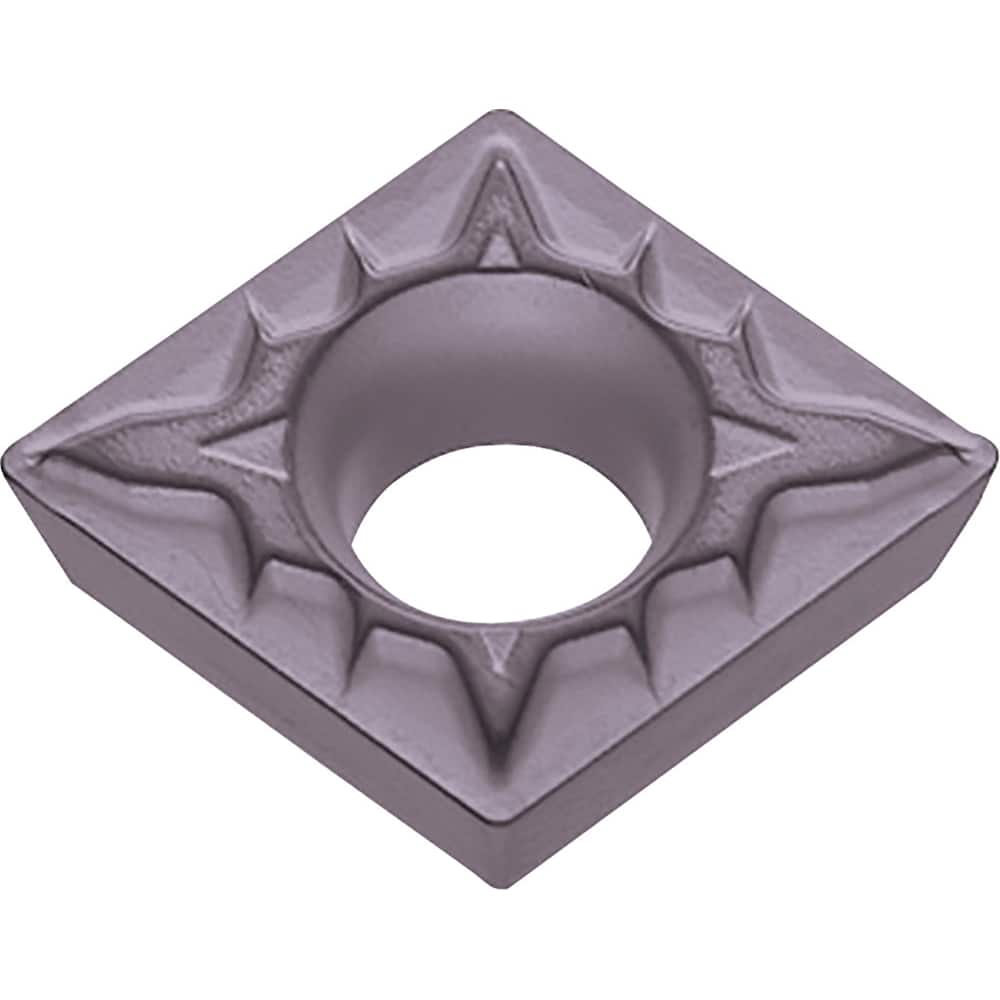

CPMT090304XP PR1535 Carbide Turning Insert Megacoat Nano Finish, Neutral, 3/8″ Inscribed Circle, 0.0157″ Corner Radius, 0.1252″ Thick, 80° Diamond
Item #: 96197355
Brand: Kyocera
Model #: TLC02255
Product Specifications
| Insert Style | CPMT |
| Insert Shape Code | C |
| Insert Size Code | 321 |
| Insert Shape | Diamond |
| Clearance Code | P |
| Tolerance Code | M |
| Manufacturer Grade | PR1535 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 11 |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | S; M |
| Manufacturers Catalog Number | CPMT321XPPR1535 |
| Chip Breaker | T |
| Multi-Use Tool | Yes |
| Coating/Finish | Megacoat Nano |
| Multi-Use Application | Internal Facing; Boring |
