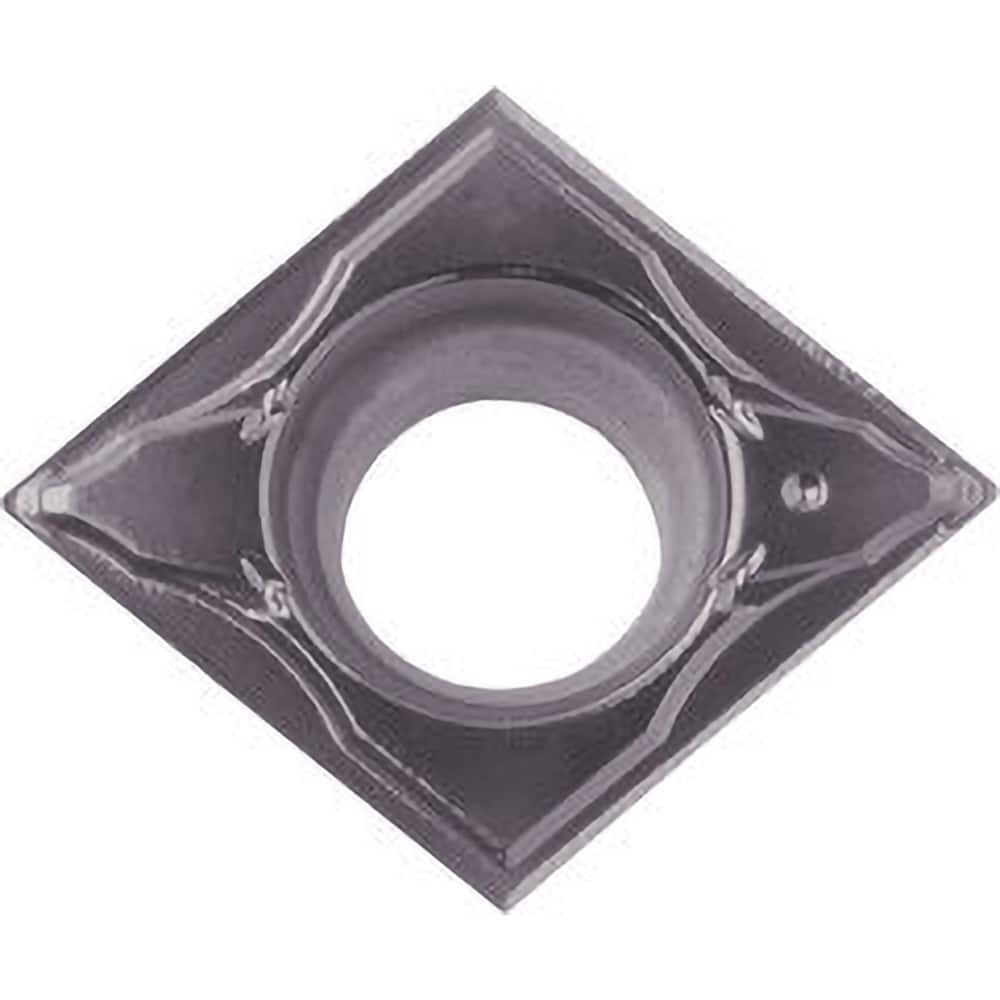

CCGT21502MFPGF PR1725 Carbide Turning Insert Megacoat Nano Plus Finish, Neutral, 1/4″ Inscribed Circle, 0.0039″ Corner Radius, 3/32″ Thick, 80° Diamond, Series CCGT
Item #: 96189774
Brand: Kyocera
Model #: TLM00066
Product Specifications
| Insert Style | CCGT |
| Insert Shape Code | C |
| Insert Size Code | 21502 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1725 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCGT |
| Coating Process | PVD |
| Rake | Positive |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | P |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | M |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | CCGT21502MFPGFPR1725 |
| Iso Code | CCGT060201MFP-GF |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | CCGT21502MFPGF PR1725 |
| Chip Breaker | GF |
| Cutting Edge Style | Sharp |
| Multi-Use Tool | Yes |
| Coating/Finish | Megacoat Nano Plus |
| Multi-Use Application | External Turning; Facing; Sub-Spindle; Internal Facing; Boring |
